1
Engine displacement
1000
2
Model
GT
3
Year
1988
4
Trim
GT
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Driven shaft
by
Carburettors
Gear box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Ring nut
GU93601022
£48,91 Unit Price incl. VAT
2
Washer 22x20x3,9
GU95028022
£2,04 Unit Price incl. VAT
3
Clutch gearing
GU14081811
Not Available
3
Clutch gear
GU30081810
£136,22 Unit Price incl. VAT
4
O-ring 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
5
Clutch shaft
GU14210702
£79,61 Unit Price incl. VAT
6
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
7
Oil-spreading washer 25,1x36x0,5
GU14218401
£12,85 Unit Price incl. VAT
8
Gear Z=17
GU14211110
Not Available
9
Hose
GU14211201
Not Available
10
Belleville spring
GU13211500
Not Available
11
Disc
GU14211600
Not Available
12
Half ring
GU12211700
£11,64 Unit Price incl. VAT
13
Spacer
GU14219401
£21,67 Unit Price incl. VAT
14
Primary gear shaft
GU14210513
Not Available
15
Thrust washer sp.2
GU18211050
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,2
GU18211052
£10,39 Unit Price incl. VAT
15
Thrust washer sp.2,1
GU18211051
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,4
GU18211054
£12,89 Unit Price incl. VAT
16
Roller bearing
GU92258525
Not Available
17
Gear 5a Z=28
GU14212013
Not Available
18
Roller
GU92296750
£1,70 Unit Price incl. VAT
19
Spring
GU94321051
£1,91 Unit Price incl. VAT
20
Roller cage 30x35x13
GU92251030
£21,80 Unit Price incl. VAT
21
Bush 5a AP
GU14212210
£86,42 Unit Price incl. VAT
22
Sliding sleeve
GU14231510
Not Available

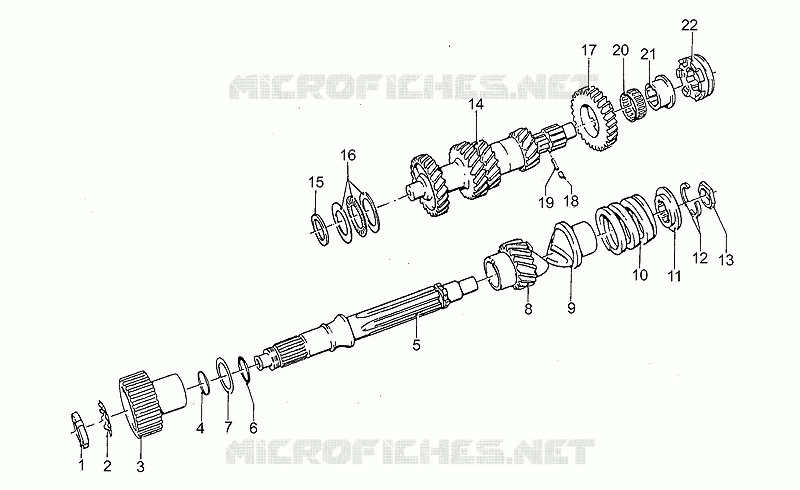

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
