1
Engine displacement
1000
2
Model
GT
3
Year
1988
4
Trim
GT
5
Parts Catalog
Dashboard, 2nd s., blue
6
Parts Diagram
Parts Catalog
Dashboard, 1st s., grey
by
Dashboard,23rd s., white
Dashboard, 2nd s., blue
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
Dashboard box assy.
GU23760010
Not Available
2
Speedometer
GU17761560
Not Available
4
Tachometer
GU17767260
£359,42 Unit Price incl. VAT
5
Rev counter container
GU28761933
Not Available
6
Speedometer container
GU28762033
Not Available
7
screw
GU98622214
£0,98 Unit Price incl. VAT
8
Spacer
GU23765110
Not Available
9
Speedometer fixing plate
GU28764933
Not Available
10
Lampholder
GU14768650
Not Available
11
Lamp 12V-3W
GU17762150
Not Available
12
Speedometer transmission
GU28760410
Not Available
13
plate
GU23766510
£60,88 Unit Price incl. VAT
14
Rev counter transmission
GU28768150
£38,77 Unit Price incl. VAT
15
Lower cover
GU29765250
Not Available
16
Self-tap screw
GU99210210
£3,26 Unit Price incl. VAT
17
Lampholder
GU19768680
£8,40 Unit Price incl. VAT
18
Lamp
GU93450140
Not Available
19
U-bolt
GU23764110
Not Available
20
Spacer
GU23766911
£10,08 Unit Price incl. VAT
21
screw
GU98054225
Not Available
22
Washer
GU95004205
£1,13 Unit Price incl. VAT
23
Hex screw
GU98054322
£0,40 Unit Price incl. VAT
24
Washer 6,15x11x0,8
GU95004206
Not Available
25
Rubber spacer
GU91551085
Not Available
26
Spacer
GU91180607
Not Available
27
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
28
Turn indicator switch
GU28745760
Not Available
29
Rubber protection
GU35755780
Not Available
30
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
31
screw
GU98054220
£1,18 Unit Price incl. VAT
32
Spacer
GU28766933
Not Available
33
Special washer
GU61013800
£1,26 Unit Price incl. VAT
34
Gear Z=14
GU14769200
Not Available
35
Gear Z5/11
GU14762510
Not Available
36
Pinion Z=5
GU12763300
Not Available
37
Chain ring
GU14766110
Not Available
38
Sheath
GU17762200
Not Available
39
Turn indicator switch
GU28745761
Not Available

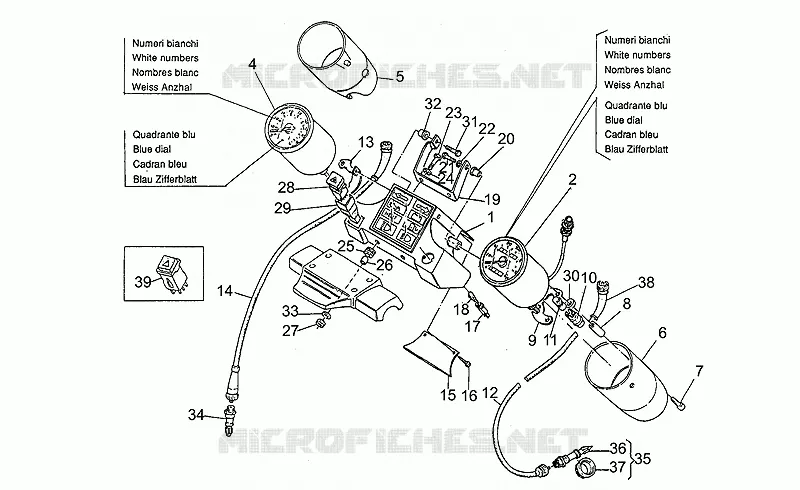

Find the detailed Dashboard, 2nd s., blue MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
