1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2005
4
Trim
California EV PI
5
Parts Catalog
Crankshaft - Piston
6
Parts Diagram
Parts Catalog
Rear lights
by
Heads
Crankshaft - Piston
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
1
Cylinder with piston
GU03060132
Not Available
2
screw
GU98082535
£4,98 Unit Price incl. VAT
2
screw M8x20
GU98084420
£3,79 Unit Price incl. VAT
3
Piston assy
GU03060230
£126,91 Unit Price incl. VAT
4
Pistonring set
GU30060660
Not Available
5
Piston ring
GU30060760
£75,68 Unit Price incl. VAT
6
Piston ring
GU30060960
£52,38 Unit Price incl. VAT
7
Piston ring
GU30061060
Not Available
8
Piston pin
GU30061241
£114,19 Unit Price incl. VAT
9
Stop ring
GU90351038
Not Available
10
Gasket
GU14020865
£5,98 Unit Price incl. VAT
11
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
12
Stud bolt
GU12021800
£35,70 Unit Price incl. VAT
13
Stud bolt
GU12021700
Not Available
14
Connecting rod cpl.
GU01061532
£184,60 Unit Price incl. VAT
15
Connecting rod screw
GU01062230
£54,70 Unit Price incl. VAT
16
Bushing
GU91112128
£67,02 Unit Price incl. VAT
17
Bearing half-shell
GU01062030
£21,38 Unit Price incl. VAT
17
Bearing half-shell min.0,762
GU01062033
Not Available
17
Bearing half-shell min.0,508
GU01062032
Not Available
17
Bearing half-shell min.0,254
GU01062031
Not Available
18
Crankshaft cpl.
GU37064106
Not Available
19
Cover
GU37065405
£15,98 Unit Price incl. VAT
20
Flywheel cpl.
GU03067055
£227,28 Unit Price incl. VAT
20
Flywheel cpl.
GU03067030
£175,37 Unit Price incl. VAT
21
screw M8x25
GU03067730
£2,47 Unit Price incl. VAT
21
screw
GU12067701
£0,72 Unit Price incl. VAT
22
Chain ring
GU03068055
£230,75 Unit Price incl. VAT
22
Chain ring
GU17067900
£184,60 Unit Price incl. VAT
23
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

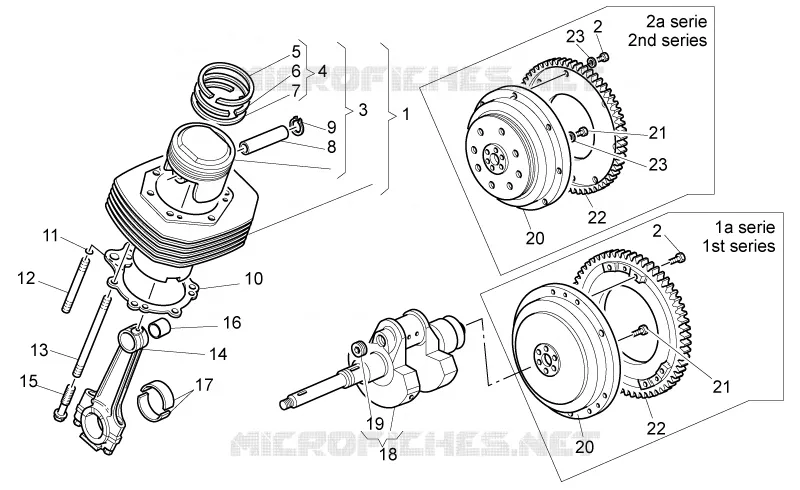

Find the detailed Crankshaft - Piston MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
