1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2005
4
Trim
California EV PI
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Fuel vapour recover system
by
Saddle-Central bod
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Fuel tank blank
GU03100270
£276,89 Unit Price incl. VAT
1
Fuel tank blue
GU89000507
£1 113,34 Unit Price incl. VAT
1
Fuel tank, grey l.
GU89000546
Not Available
1
Fuel tank, grey m.
GU89000544
£1 113,34 Unit Price incl. VAT
1
Fuel tank, black
GU89000505
£1 113,34 Unit Price incl. VAT
1
Fuel tank red
GU89000506
£1 142,17 Unit Price incl. VAT
2
RH stic."Moto Guzzi" red/gold
GU03917810
Not Available
2
RH stic."Moto Guzzi" grey/red
GU03917872
Not Available
2
RH stic."Moto Guzzi" bla/red
GU03917871
£46,13 Unit Price incl. VAT
2
RH sticker "MotoGuzzi" si/cop.line
GU03917870
Not Available
3
LH stic."Moto Guzzi" grey/red
GU03917972
£46,15 Unit Price incl. VAT
3
LH stic."Moto Guzzi" black/red
GU03917971
Not Available
3
LH stic."Moto Guzzi" red/gold
GU03917910
£26,03 Unit Price incl. VAT
3
L.H. sticker "Moto Guzzi" si/cop line
GU03917970
Not Available
4
Gasket
GU03106400
Not Available
5
Tank cap
GU03103970
Not Available
6
Flange
GU03101900
£57,32 Unit Price incl. VAT
7
Gasket
GU03102400
£11,75 Unit Price incl. VAT
8
Plug ring nut
GU03102200
£22,43 Unit Price incl. VAT
9
Gasket
GU03101600
£38,39 Unit Price incl. VAT
10
Reduction 38 mm
GU03101720
£7,43 Unit Price incl. VAT
11
screw
GU03103200
£7,98 Unit Price incl. VAT
12
Hex socket screw M8x30
GU98350430
£2,35 Unit Price incl. VAT
13
Washer
GU95100239
£2,04 Unit Price incl. VAT
14
Spacer
GU31103565
£7,36 Unit Price incl. VAT
15
Rubber spacer
GU91551131
£2,16 Unit Price incl. VAT
16
Captive nut
GU92660801
£2,04 Unit Price incl. VAT
17
Decal "Attention"
GU30944300
£13,50 Unit Price incl. VAT
18
Sticker L.H.copper line
GU03923971
Not Available
18
Gold LH line decal
GU03923914
£61,45 Unit Price incl. VAT
18
Red LH line decal
GU03923916
£61,45 Unit Price incl. VAT
19
Lock kit
GU03736870
Not Available
20
Non indented key blank
GU30735500
£10,22 Unit Price incl. VAT
21
Decal "Italian Story"
GU03917570
£32,58 Unit Price incl. VAT
22
RH front protect chrome
GU03472400
£32,30 Unit Price incl. VAT
23
LH front protect chrome
GU03472900
£34,61 Unit Price incl. VAT
24
Hex socket screw
GU98370619
£1,58 Unit Price incl. VAT
25
Washer
GU03462801
£1,87 Unit Price incl. VAT
26
Spacer 6,25x8x5
GU91180600
£7,98 Unit Price incl. VAT
27
Rubber spacer 8x15
GU91551081
£1,70 Unit Price incl. VAT
28
Gasket
GU00823931055
£10,76 Unit Price incl. VAT
29
Ring
GU03103500
£13,40 Unit Price incl. VAT
30
Gold RH line decal
GU03923911
£61,49 Unit Price incl. VAT
30
Red RH line decal
GU03923913
£61,45 Unit Price incl. VAT
30
Sticker R.H.copper line
GU03923970
Not Available
31
Decal "Unleaded Fuelonly"
GU03995730
£8,08 Unit Price incl. VAT
32
Tank cap ring and spring kit
GU03104370
£20,60 Unit Price incl. VAT

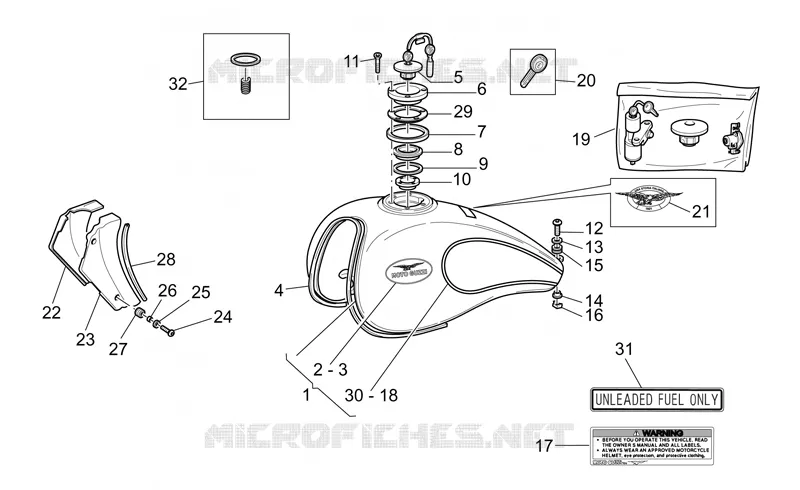

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
