1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2001
4
Trim
California EV Touring/80
5
Parts Catalog
Stands
6
Parts Diagram
Parts Catalog
Protection
by
Transmission complete
Stands
39
38
37
36
35
34
33
32
31
30
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
13
12
11
11
10
9
8
8
8
7
6
5
4
3
2
1
1
Central stand
GU03430310
Not Available
2
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
3
Lateral stand
GU03432060
Not Available
4
RH plate
GU14432900
Not Available
5
LH plate
GU14433200
Not Available
6
Spring
GU03434011
£10,94 Unit Price incl. VAT
7
screw
GU98082545
£1,50 Unit Price incl. VAT
8
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
9
Washer
GU03433400
£7,98 Unit Price incl. VAT
10
LH bush
GU14433500
£13,44 Unit Price incl. VAT
11
Nut
GU92640310
Not Available
12
Pin M12x250
GU03429600
£57,84 Unit Price incl. VAT
13
Washer
GU95008517
Not Available
14
RH inner spacer
GU30429960
£16,14 Unit Price incl. VAT
15
RH outer spacer
GU30429860
£14,27 Unit Price incl. VAT
16
Nut M12x1,25
GU92606312
£1,02 Unit Price incl. VAT
17
plate
GU18432760
£14,10 Unit Price incl. VAT
18
Spring
GU14434000
£8,26 Unit Price incl. VAT
19
Adjuster screw
GU98084216
£1,20 Unit Price incl. VAT
20
Nut
GU92606205
£1,02 Unit Price incl. VAT
21
Block
GU13433440
Not Available
22
Lock
GU03432740
£28,52 Unit Price incl. VAT
23
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
24
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
25
Support clamp
GU03433850
£13,03 Unit Price incl. VAT
26
screw
GU98054418
Not Available
27
Disc
GU39103500
Not Available
28
Hex socket screw M8x40
GU98680440
£1,02 Unit Price incl. VAT
29
Switch
GU03759150
£41,26 Unit Price incl. VAT
30
Washer 8,4x15
GU03270300
£0,19 Unit Price incl. VAT
31
Nut
GU92606508
£1,26 Unit Price incl. VAT
32
Pad
GU39103400
£10,22 Unit Price incl. VAT
33
RH bush
GU30433560
£13,44 Unit Price incl. VAT
34
Hex screw M10x50
GU98082550
£1,49 Unit Price incl. VAT
35
screw
GU98684416
Not Available
36
LH inner spacer
GU30429760
£16,14 Unit Price incl. VAT
37
LH outer spacer
GU14429900
£19,45 Unit Price incl. VAT
38
Hex screw
GU98084316
£1,20 Unit Price incl. VAT
39
Central stand assy.
GU03430250
Not Available

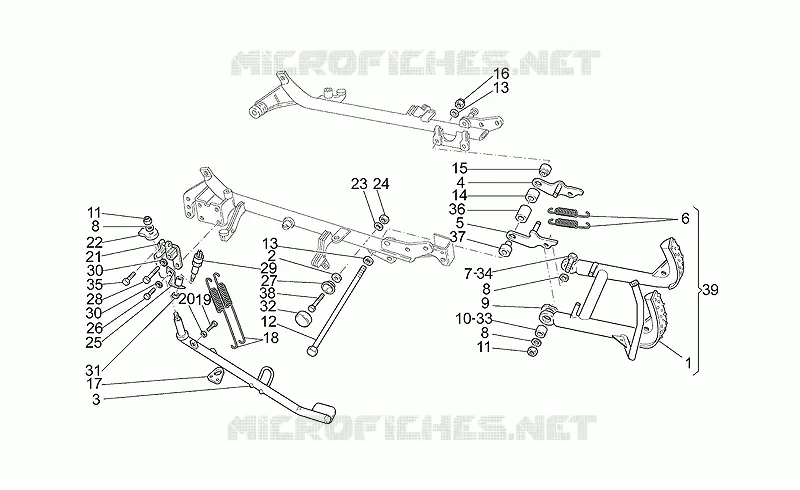

Find the detailed Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for California EV Touring/80

Battery

Battery

for California EV Touring/80 from 2001

40 L top box

40 L top box

for California EV Touring/80 from 2001

45 L top box

45 L top box

for California EV Touring/80 from 2001

Side cases

Side cases

for California EV Touring/80 from 2001

Protection

Protection

for California EV Touring/80 from 2001

Stands

Stands

for California EV Touring/80 from 2001

Transmission complete

Transmission complete

for California EV Touring/80 from 2001

Dashboard

Dashboard

for California EV Touring/80 from 2001

Windshield

Windshield

for California EV Touring/80 from 2001

Headlight

Headlight

for California EV Touring/80 from 2001

Taillight

Taillight

for California EV Touring/80 from 2001

Air filter

Air filter

for California EV Touring/80 from 2001

Front fork

Front fork

for California EV Touring/80 from 2001

Swing arm

Swing arm

for California EV Touring/80 from 2001

Electrical system

Electrical system

for California EV Touring/80 from 2001

Front brake system

Front brake system

for California EV Touring/80 from 2001

Leather side cases

Leather side cases

for California EV Touring/80 from 2001

Frau leather side cases

Frau leather side cases

for California EV Touring/80 from 2001

Handlebar - Controls

Handlebar - Controls

for California EV Touring/80 from 2001

Windscreen

Windscreen

for California EV Touring/80 from 2001

Front mudguard

Front mudguard

for California EV Touring/80 from 2001

Rear mudguard

Rear mudguard

for California EV Touring/80 from 2001

Foot rests

Foot rests

for California EV Touring/80 from 2001

Rear brake caliper

Rear brake caliper

for California EV Touring/80 from 2001

Front master cilinder

Front master cilinder

for California EV Touring/80 from 2001

Rear master cylinder

Rear master cylinder

for California EV Touring/80 from 2001

Luggage rack

Luggage rack

for California EV Touring/80 from 2001

Front wheel

Front wheel

for California EV Touring/80 from 2001

Rear wheel

Rear wheel

for California EV Touring/80 from 2001

Saddle

Saddle

for California EV Touring/80 from 2001

Fuel tank

Fuel tank

for California EV Touring/80 from 2001

Fuel tank, USA-CDN-SGP

Fuel tank, USA-CDN-SGP

for California EV Touring/80 from 2001

F.fork-R.shock absorber

F.fork-R.shock absorber

for California EV Touring/80 from 2001

Frame

Frame

for California EV Touring/80 from 2001

Exhaust unit

Exhaust unit

for California EV Touring/80 from 2001

Gear lever

Gear lever

for California EV Touring/80 from 2001

Drive shaft

Drive shaft

for California EV Touring/80 from 2001

Driven shaft

Driven shaft

for California EV Touring/80 from 2001

Supply (Carburettor)

Supply (Carburettor)

for California EV Touring/80 from 2001

Gear box

Gear box

for California EV Touring/80 from 2001

Crankcase

Crankcase

for California EV Touring/80 from 2001

Starter motor cover

Starter motor cover

for California EV Touring/80 from 2001

Throttle body

Throttle body

for California EV Touring/80 from 2001

Timing system

Timing system

for California EV Touring/80 from 2001

Clutch

Clutch

for California EV Touring/80 from 2001

Generator - Regulator

Generator - Regulator

for California EV Touring/80 from 2001

Starter motor

Starter motor

for California EV Touring/80 from 2001

Oil pump

Oil pump

for California EV Touring/80 from 2001

Transmission cage

Transmission cage

for California EV Touring/80 from 2001

Heads

Heads

for California EV Touring/80 from 2001

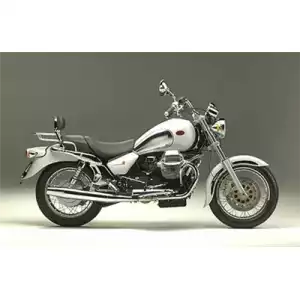

MOTO GUZZI LAVERDA SCARABEO California EV Touring/80 2001
