1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2001
4
Trim
California EV Touring/80
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Frau leather side cases
by
Windscreen
Handlebar - Controls
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Handlebar
GU03600310
£171,85 Unit Price incl. VAT
2
Throttle pipe w/out hand grip
GU03603860
£16,28 Unit Price incl. VAT
3
Washer
GU27530594
Not Available
4
RH hand grip
GU03603315
Not Available
4
RH hand grip
GU03603560
£33,41 Unit Price incl. VAT
5
RH lights selector
GU03738846
£299,84 Unit Price incl. VAT
5
RH lights selector
GU03738845
£127,38 Unit Price incl. VAT
6
Gas lever transmission
GU03117545
£52,94 Unit Price incl. VAT
7
Plate
GU27530595
£3,91 Unit Price incl. VAT
8
LH lights selector
GU03738045
£284,89 Unit Price incl. VAT
9
Bush
GU03604245
£8,03 Unit Price incl. VAT
10
LH hand grip
GU03603060
£33,41 Unit Price incl. VAT
10
LH hand grip
GU03602915
Not Available
11
Hose clamp L46 mm
GU01609630
£3,95 Unit Price incl. VAT
12
LH rearview mirror
GU14769470
Not Available
13
Starter lever
GU27135215
Not Available
14
Choke cable
GU03132845
£45,28 Unit Price incl. VAT
15
Spring
GU94321070
£3,60 Unit Price incl. VAT
16
Clutch lever
GU03605545
£88,48 Unit Price incl. VAT
17
Nut
GU92602206
£1,68 Unit Price incl. VAT
18
Clump
GU30601060
£1,66 Unit Price incl. VAT
19
Lever pin
GU27604315
£10,20 Unit Price incl. VAT
20
Register
GU30602500
Not Available
21
Clutch cable
GU03093045
£78,13 Unit Price incl. VAT
22
Guard
GU27663815
£11,88 Unit Price incl. VAT
23
Rearview mirror
GU03769400
Not Available
24
Balancing
GU03602760
£117,00 Unit Price incl. VAT
25
RH rearview mirror
GU14769870
£59,15 Unit Price incl. VAT
26
RH eyelet for trans.guide
GU03669000
£47,66 Unit Price incl. VAT
27
LH eyelet for trans.guide
GU03669001
£47,66 Unit Price incl. VAT

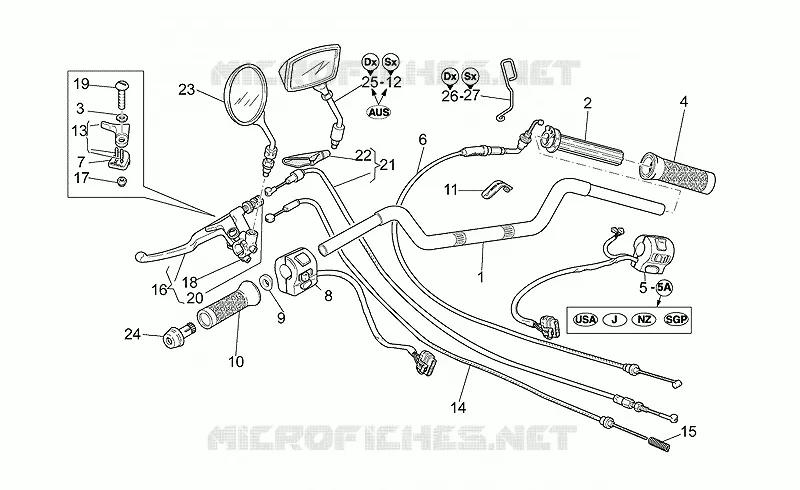

Find the detailed Handlebar - Controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
