Engine displacement
750
2
Model
BREVA
3
Year
2004
4
Trim
Breva IE
5
Parts Catalog
Transmission cage
6
Parts Diagram
Parts Catalog
Gear box selector
by
Front electrical system
Transmission cage
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
23
24
25
26
27
1
Gearbox cover
976605
Not Available
1
Gearbox cover
GU32200810
Not Available
2
Roulement 15x35x11
GU92204215
£38,80 Unit Price incl. VAT
3
Gasket ring 28x40x7
GU90402841
£3,04 Unit Price incl. VAT
4
Joint torique 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT
5
Plaque
GU32213810
£12,16 Unit Price incl. VAT
6
Vis TCEI M6x14
GU98682314
£1,26 Unit Price incl. VAT
7
Washer 6,4x10x0,7
GU14217901
Not Available
8
Oil bulhead
GU32208210
£37,43 Unit Price incl. VAT
9
Bague 10,25x15,7x8
GU19202320
£10,75 Unit Price incl. VAT
10
Gasket
GU23200370
£6,84 Unit Price incl. VAT
11
Capteur POINT MORT
GU19207220
£88,42 Unit Price incl. VAT
12
Joint 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
13
Vis M12x1,25
GU19237800
£20,20 Unit Price incl. VAT
14
Ecrou bas M12x1,25
GU92606512
£2,04 Unit Price incl. VAT
15
Gasket
GU19201120
£5,68 Unit Price incl. VAT
16
Bague 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
17
Transmission cage
GU32200210
Not Available
17
Gearbox black
976606
Not Available
18
Vis M6X30
GU98682330
£1,26 Unit Price incl. VAT
19
Vis TCEI M8x35
GU98680435
£4,98 Unit Price incl. VAT
20
Ball bearing 20x42x12
GU92201120
£32,68 Unit Price incl. VAT
21
Transmission assy and housing
GU32991510
Not Available
21
Transmission assy and housing
976940
Not Available
21
Transmission assy and housing
GU32991511
£2 534,47 Unit Price incl. VAT
22
Bouchon purge
GU32206510
£21,79 Unit Price incl. VAT
23
Joint
GU01528930
£4,21 Unit Price incl. VAT
24
Bouchon huile
GU12022600
£36,13 Unit Price incl. VAT
25
Joint torique 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
26
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
27
Hex socket screw M6x35
GU98680335
£0,35 Unit Price incl. VAT

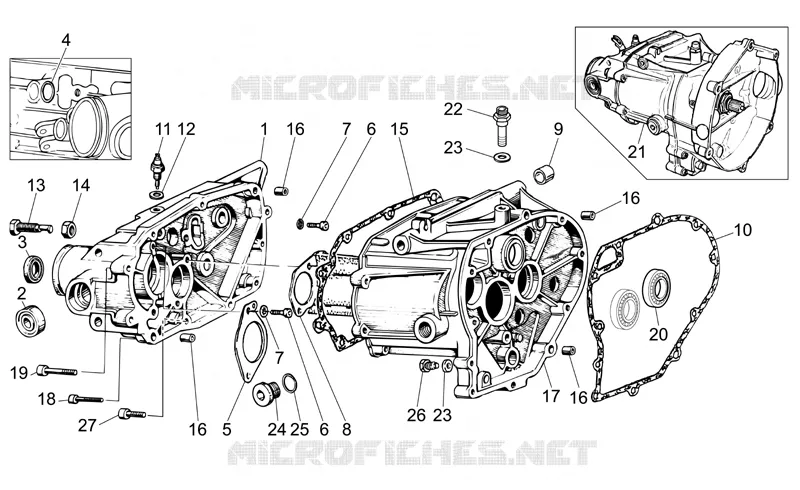

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
