Parts Catalog
Frame I
6
Parts Diagram
Parts Catalog
by
Transmission complete I
Frame I
1
2
3
4
5
5
6
6
7
8
8
8
9
9
10
11
12
13
14
1
Frame assy black
GU32400110
£282,66 Unit Price incl. VAT
2
Hex socket screw M10x30
GU98682530
Not Available
3
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
4
Plate
GU27418210
Not Available
5
Hex socket screw M8x16
GU98350416
£0,38 Unit Price incl. VAT
6
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
7
Pin M10x205
GU98110199
£37,12 Unit Price incl. VAT
8
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
9
Nut M10x1,5
GU92606210
£1,67 Unit Price incl. VAT
10
screw M10x55
GU98680555
£5,23 Unit Price incl. VAT
11
Guard
GU32457810
£5,81 Unit Price incl. VAT
12
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
13
Vibration-damping rubber
GU01103860
£8,16 Unit Price incl. VAT
14
Plate
GU32418260
Not Available

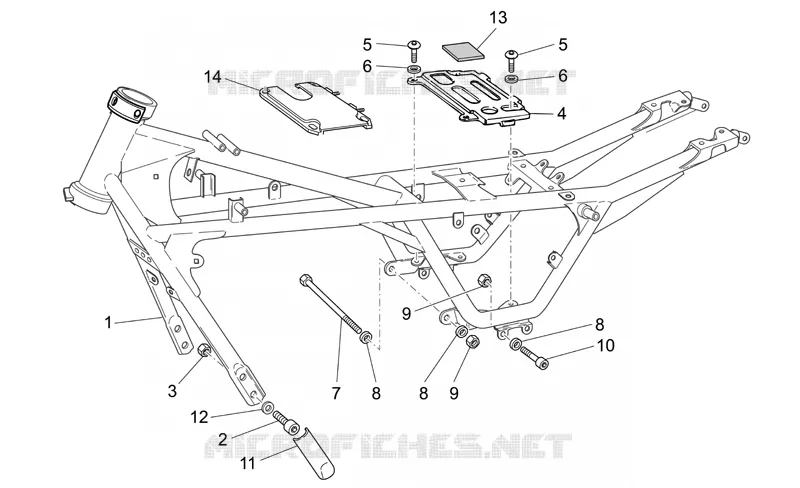

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
