Engine displacement
750
2
Model
BREVA
3
Year
2004
4
Trim
Breva IE
5
Parts Catalog
Handlebar - Controls
6

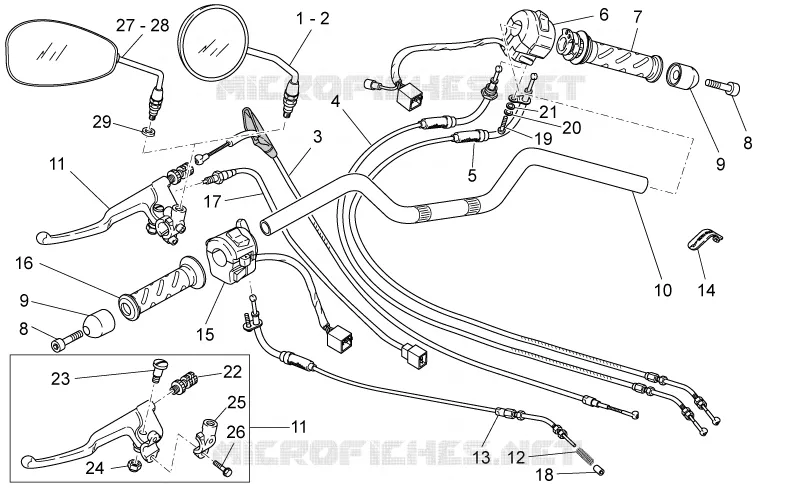

Parts Diagram
Parts Catalog
Decal and plate set
by
Handlebar - Controls
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
LH rearview mirror
GU32769810
Not Available
2
RH rearview mirror
GU32769410
Not Available
3
Clutch cable
GU32093010
Not Available
4
Gas trasmission delivery
GU32117010
£51,14 Unit Price incl. VAT
5
Gas trasmission return
GU32117011
£49,40 Unit Price incl. VAT
6
RH lights selector
GU32738810
£129,82 Unit Price incl. VAT
7
RH hand grip
GU32603310
£19,12 Unit Price incl. VAT
8
Hex socket screw M6x40
GU98680340
£1,26 Unit Price incl. VAT
9
Anti.v weight, black
AP8104509
£32,14 Unit Price incl. VAT
10
Handlebar
GU32600310
£135,54 Unit Price incl. VAT
11
Clutch lever
GU32605510
£43,92 Unit Price incl. VAT
12
Spring 7x1,1x25
GU94321074
£3,97 Unit Price incl. VAT
13
Choke cable
GU32137010
£57,12 Unit Price incl. VAT
14
Hose clamp L36 mm
GU03609600
£1,94 Unit Price incl. VAT
14
Hose clamp L46 mm
GU01609630
£3,95 Unit Price incl. VAT
15
LH lights selector
GU32738010
Not Available
16
LH hand grip
GU32603010
£19,12 Unit Price incl. VAT
17
Lateral stand switch
GU29759150
£88,81 Unit Price incl. VAT
18
Cover
GU39094200
£0,88 Unit Price incl. VAT
19
Hex socket screw
GU98230510
£1,02 Unit Price incl. VAT
20
Washer 5,3X10X1
GU95008305
£2,47 Unit Price incl. VAT
21
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
22
Register
GU30602500
Not Available
23
screw
AP8213028
£18,28 Unit Price incl. VAT
24
Self-locking nut
AP8213388
Not Available
25
Clump
GU30601060
£1,66 Unit Price incl. VAT
26
Black screw w/ flange M6x25
GU97202325
£4,08 Unit Price incl. VAT
27
RH rearview mirror
GU32769460
Not Available
28
LH rearview mirror
GU32769860
Not Available
29
Spacer 10,25X20X4
GU91181003
£16,85 Unit Price incl. VAT
