Engine displacement
750
2
Model
BREVA
3
Year
2003
4
Trim
Breva IE
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Fron fork II
by
Front body - Duct
Throttle body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Throttle assy
GU32112510
£1 946,05 Unit Price incl. VAT
2
Potentiometer
GU32530508
Not Available
3
RH manifold
GU32115010
£32,94 Unit Price incl. VAT
4
Injector kit complete
GU32115710
£160,56 Unit Price incl. VAT
5
Cap
GU32115610
£12,28 Unit Price incl. VAT
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Gasket
GU32115510
£7,78 Unit Price incl. VAT
8
LH manifold
GU32115011
£32,94 Unit Price incl. VAT
9
Hex socket screw M6x22
GU98682322
£1,20 Unit Price incl. VAT
10
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
11
screw M6x10
GU98310609
£1,20 Unit Price incl. VAT
12
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
13
Hose clamp 57x59,5x10
GU93305057
£10,75 Unit Price incl. VAT
14
Hose
GU32114310
£16,78 Unit Price incl. VAT
15
Hose clamp 61/65,5
GU93305061
£10,04 Unit Price incl. VAT
16
Right throttle body
GU32112610
£323,04 Unit Price incl. VAT
17
Left throttle body
GU32112611
£1 910,90 Unit Price incl. VAT
18
Rod
GU32530509
Not Available
19
Plate
GU32113010
£38,44 Unit Price incl. VAT
20
Shear rivet
GU97270212
£21,41 Unit Price incl. VAT
21
Hose clamp
GU32718010
£5,24 Unit Price incl. VAT

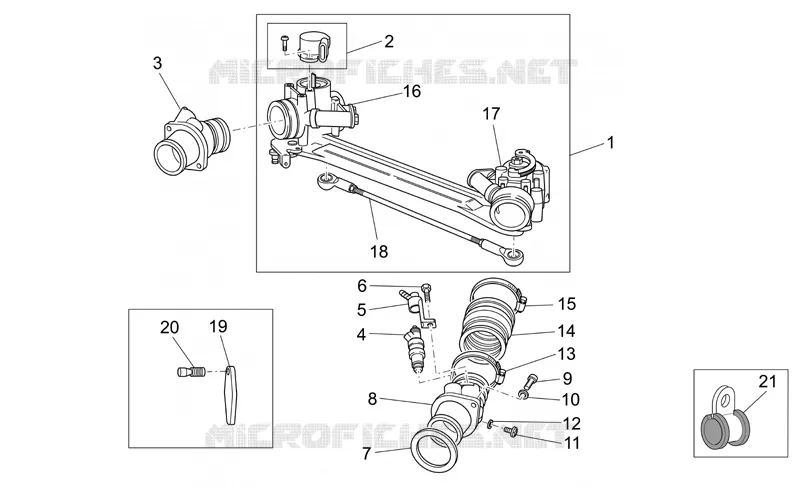

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
