Engine displacement
750
2
Model
BREVA
3
Year
2003
4
Trim
Breva IE
5
Parts Catalog
Fuel supply
6
Parts Diagram
Parts Catalog
Rear electrical system
by
Clutch I
Fuel supply
1
2
3
4
4
4
4
4
5
5
6
7
8
1
Fuel pump
GU32107210
Not Available
2
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
3
Joint
GU32106610
£29,44 Unit Price incl. VAT
4
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
5
Fuel pipe 6x13
AP8144069
Not Available
6
3-way union
AP8120116
£33,00 Unit Price incl. VAT
7
Fuel pipe, cpl.
GU32106510
£125,26 Unit Price incl. VAT
8
Plate
GU32118610
Not Available

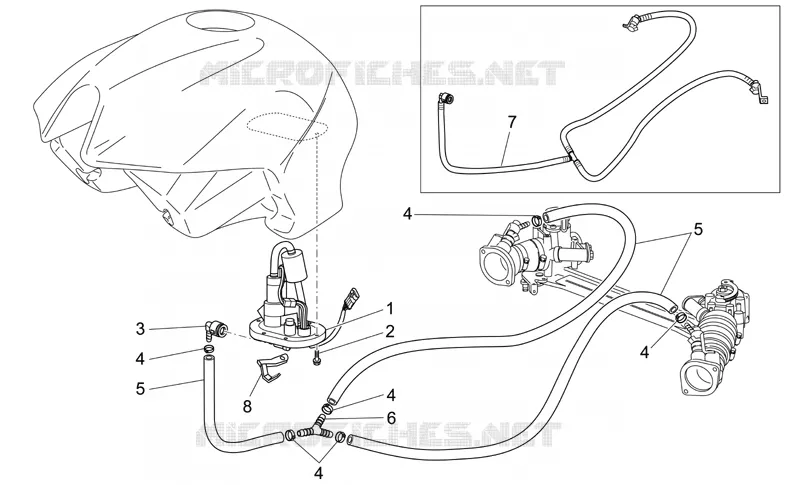

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
