Engine displacement
100
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 4T E3
5
Parts Catalog
Carburettor III
6
Parts Diagram
Parts Catalog
Carburettor II
by
Front fork
Carburettor III
1
2
3
4
5
6
7
1
Float
828832
£49,56 Unit Price incl. VAT
2
Bracket
828839
£40,01 Unit Price incl. VAT
3
Main jet 78
CM142103
£13,51 Unit Price incl. VAT
4
Idle jet 38
CM142303
£12,36 Unit Price incl. VAT
5
Float chamber
CM142802
£58,56 Unit Price incl. VAT
5
Float chamber
CM142806
Not Available
6
Fuel closing needle
CM147102
£16,48 Unit Price incl. VAT
7
Pickup pump rod
969827
Not Available

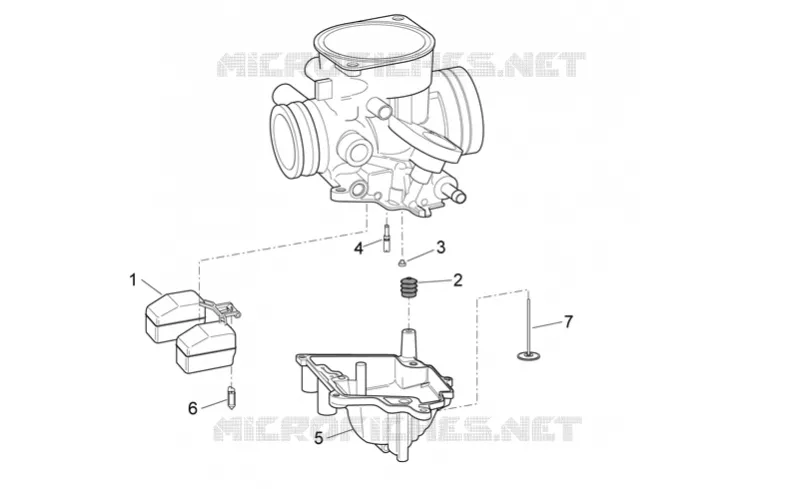

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
