Engine displacement
100
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 4T E3
5
Parts Catalog
Controls
6

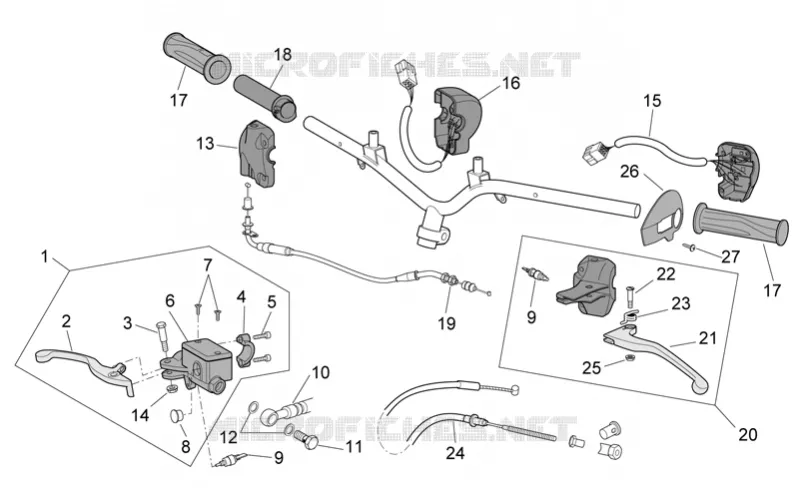

Parts Diagram
Parts Catalog
Front body II
by
Front lights
Controls
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
1
Front master cilinder
AP8213434
Not Available
1
Front master cilinder
AP8213550
Not Available
2
Front brake lever
AP8218640
Not Available
2
Front brake lever
AP8218273
Not Available
3
Brake lever pin
AP8213584
£13,28 Unit Price incl. VAT
3
Front brake lever pin
AP8221231
Not Available
4
Brake lever U-bolt
AP8113637
£33,77 Unit Price incl. VAT
4
Brake lever U-bolt
AP8213586
£33,77 Unit Price incl. VAT
5
Cap screw
AP8213582
£12,65 Unit Price incl. VAT
5
Cap screw
AP8213299
£3,38 Unit Price incl. VAT
6
Pump cover
AP8213587
£50,20 Unit Price incl. VAT
6
Pump cover
AP8213475
£40,14 Unit Price incl. VAT
7
Pump cover screw
AP8213583
£12,65 Unit Price incl. VAT
7
Pump cover screw
AP8221200
£1,98 Unit Price incl. VAT
8
Master cyl.level window
AP8113414
Not Available
9
stop Button
AP8127305
Not Available
10
Front brake hose
AP8213499
£86,92 Unit Price incl. VAT
11
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
12
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
13
RH light control cover
AP8118569
£48,14 Unit Price incl. VAT
14
Nut
AP8219550
Not Available
14
Nut
AP8213585
£7,48 Unit Price incl. VAT
15
LH lights sel. w/wiring
852239
£119,28 Unit Price incl. VAT
16
RH lights sel. w/wiring
AP8224686
Not Available
16
RH lights sel. w/wiring
852241
£119,28 Unit Price incl. VAT
17
Handgrip pair, black
AP8218611
£11,26 Unit Price incl. VAT
18
Throttle pipe w/out hand grip
AP8218214
£14,41 Unit Price incl. VAT
19
Throttle cable
AP8214214
Not Available
20
Rear brake lever complete
AP8218574
£57,02 Unit Price incl. VAT
21
LH polished lever
AP8218570
£16,70 Unit Price incl. VAT
22
screw
AP8700760
£7,48 Unit Price incl. VAT
23
Brake return spring
177072
£1,33 Unit Price incl. VAT
24
Rear brake cable
AP8214206
Not Available
25
Nut
AP8118490
£1,27 Unit Price incl. VAT
26
LH lateral cover
AP8258245
£9,79 Unit Price incl. VAT
27
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
