1
Engine displacement
100
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 4T E3
5
Parts Catalog
Front lights
6
Parts Diagram
Parts Catalog
Controls
by
Acc. - Special body parts
Front lights
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
28
28
28
29
29
1
Headlight
AP8124711
Not Available
1
Headlight
854825
Not Available
2
Screw
AP8150415
£1,27 Unit Price incl. VAT
3
Headlight adjuster spring
AP8221198
£3,06 Unit Price incl. VAT
4
Lampholder, complete
AP8224041
£14,62 Unit Price incl. VAT
5
Chromed ring nut
AP8258043
£95,69 Unit Price incl. VAT
6
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
7
Lamp 12V-35/35W
219528
£9,35 Unit Price incl. VAT
8
RH front turn indicator
AP8224698
Not Available
9
LH front turn indicator
AP8224699
Not Available
10
RH.turn indicator lens
852439
Not Available
11
LH turn indicator lens
852440
Not Available
12
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
13
Spacer
AP8221017
£4,52 Unit Price incl. VAT
14
Self-locking nut M5
AP8152306
Not Available
15
Headlight wiring w/harness
AP8124809
£28,94 Unit Price incl. VAT
16
Lamp 12V-5W
292022
Not Available
17
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
18
Front light adj.insert
AP8221301
Not Available
19
Spacer
AP8221302
Not Available
20
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
21
Screw
AP8150415
£1,27 Unit Price incl. VAT
22
RH Front spacer
CM222502
£20,66 Unit Price incl. VAT
23
LH Front spacer
CM222501
£20,66 Unit Price incl. VAT
24
RH front/LH rear turn indic.
AP8224252
Not Available
25
LH front/RH rear turn indic.
AP8224253
Not Available
26
Turn indicator lens
AP8224258
Not Available
27
screw 2,9x25
AP8224268
Not Available
28
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
29
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT

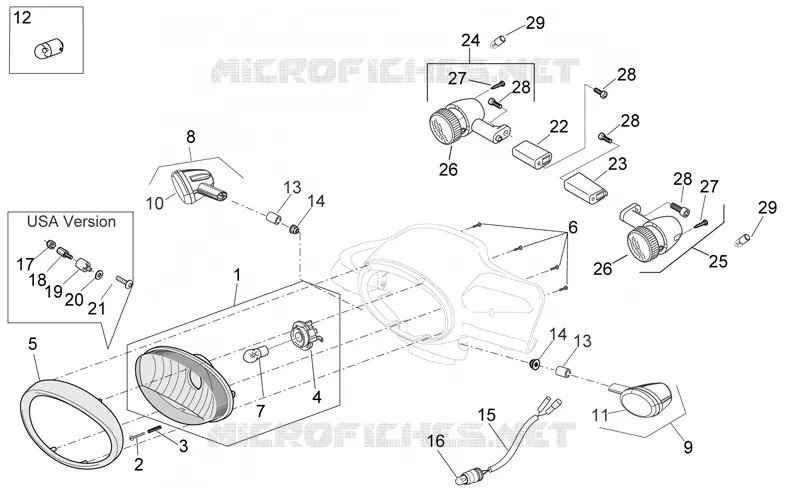

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
