1
Engine displacement
750
2
Model
BREVA
3
Year
2004
4
Trim
Breva IE
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Central stand
by
Specific tools II

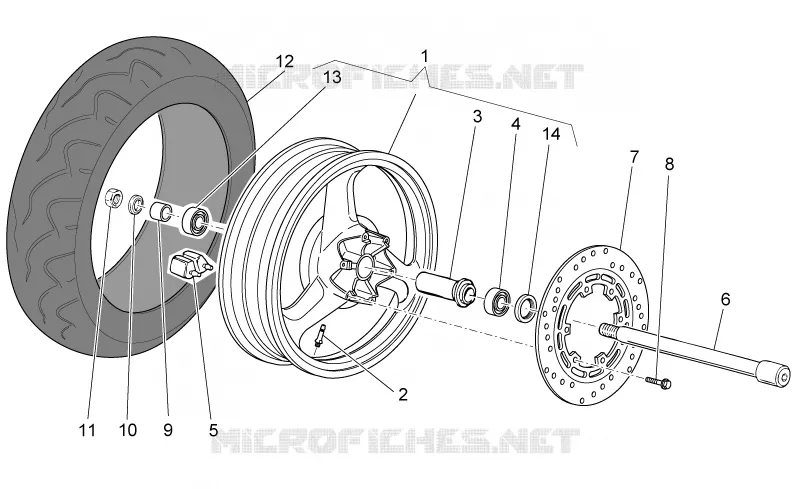

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Roue arrière nue
GU32630610
£1 219,20 Unit Price incl. VAT
1
Rear wheel
977307
Not Available
2
Soupape tubeless;
AP8201546
£5,35 Unit Price incl. VAT
3
Vis
GU32634010
£28,06 Unit Price incl. VAT
4
Roulement
GU92204217
£60,25 Unit Price incl. VAT
5
Joint en caoutchouc
GU32632510
£15,29 Unit Price incl. VAT
6
Rear wheel spindle
GU31633381
£102,74 Unit Price incl. VAT
7
Rear brake disc gold
GU32635710
£191,50 Unit Price incl. VAT
8
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
9
Entretoise
GU32634111
£15,37 Unit Price incl. VAT
10
Rondelle
GU31634481
£7,98 Unit Price incl. VAT
11
Ecrou M16x1,5
GU92606316
£5,23 Unit Price incl. VAT
12
Tyre
0000000
Not Available
13
Roulement
GU92204218
£73,26 Unit Price incl. VAT
14
Oil seal
AP8125326
Not Available

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
