1
Engine displacement
850
2
Model
V9
3
Year
2020
4
Trim
V9 Bobber Sport 850 Euro 4 ABS
5
Parts Catalog

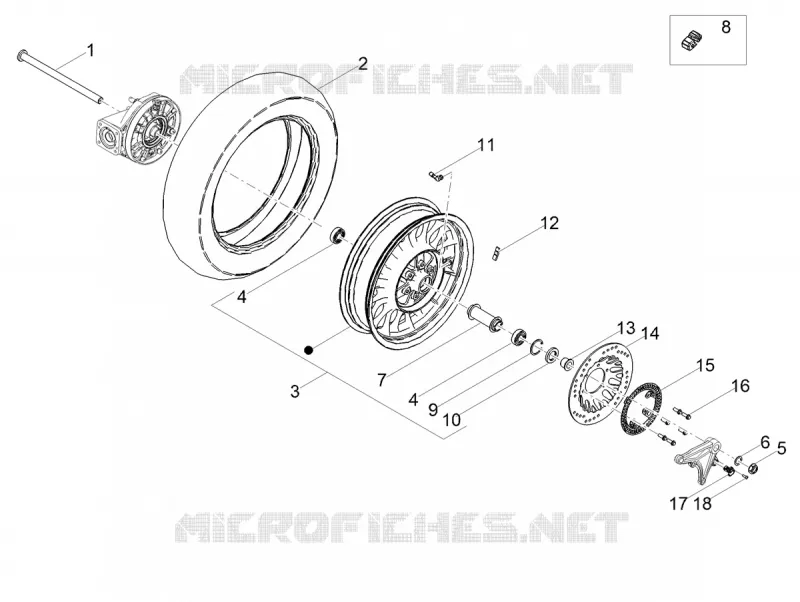

REAR WHEEL
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
FRONT BRAKE MASTER CYLINDER
REAR WHEEL
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Rear wheel spindle
2B001310
£81,16 Unit Price incl. VAT
2
Pneu AR 150/80 16" (DUNLOP)
2B005768
£563,66 Unit Price incl. VAT
2
Rear tyre 150/80 16"
2B002900
£241,36 Unit Price incl. VAT
3
Rear rim 4X16" with bearings
2B001114
£509,56 Unit Price incl. VAT
4
Ball bearing 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
5
Rear wheel spindle nut
648708
Not Available
6
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
7
Rear wheel spacer set
2B001279
£38,99 Unit Price incl. VAT
8
Rubber coupling
GU32632510
£15,29 Unit Price incl. VAT
9
Circlip 47X50,5
GU90272047
£7,98 Unit Price incl. VAT
10
Gasket ring 28X47X7
AP8110109
£6,54 Unit Price incl. VAT
11
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
12
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
13
Rear wheel spacer
2B001956
£23,00 Unit Price incl. VAT
14
Brake disc
887448
£65,28 Unit Price incl. VAT
15
Phonic wheel
2B004396R
£27,48 Unit Price incl. VAT
16
Flanged TE screw M8x22
887762
Not Available
17
Sensor ABS
859792
Not Available
18
TBEI TORX screw M5x16 INOX
1C001499
£3,38 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
