Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
HANDLEBAR - CONTROLS
ABS BRAKE SYSTEM
1
1
2
2
3
3
4
4
5
5
6
6
6
7
8
9
10
10
10
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
1
Air bleed valve
978466
£55,46 Unit Price incl. VAT
2
screw 6X20
00H02402282
Not Available
3
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
4
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
5
T bush
AP8221023
£1,64 Unit Price incl. VAT
6
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
7
Vis bride M6x12
2B005143
£0,42 Unit Price incl. VAT
8
Calculateur ABS plein
2D000453
£1 016,22 Unit Price incl. VAT
9
Plaque
2B005287
£26,95 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
11
Vis spéciale
1C001209
Not Available
12
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
13
Self-locking nut M5
AP8152306
Not Available
14
Tuyau ABS HECU - Étrier avant
2B005374
£95,21 Unit Price incl. VAT
15
Tuyau ABS HECU - Maître-cylindre de frein avant
2B005373
£49,13 Unit Price incl. VAT
16
Tuyau ABS HECU - Étrier arrière
2B005376
£94,74 Unit Price incl. VAT
17
Tuyau ABS HECU - Maître-cylindre de frein arrière
2B005375
£47,78 Unit Price incl. VAT
18
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT
19
Spring
641652
£2,59 Unit Price incl. VAT
20
Staple
2B000276
£1,86 Unit Price incl. VAT

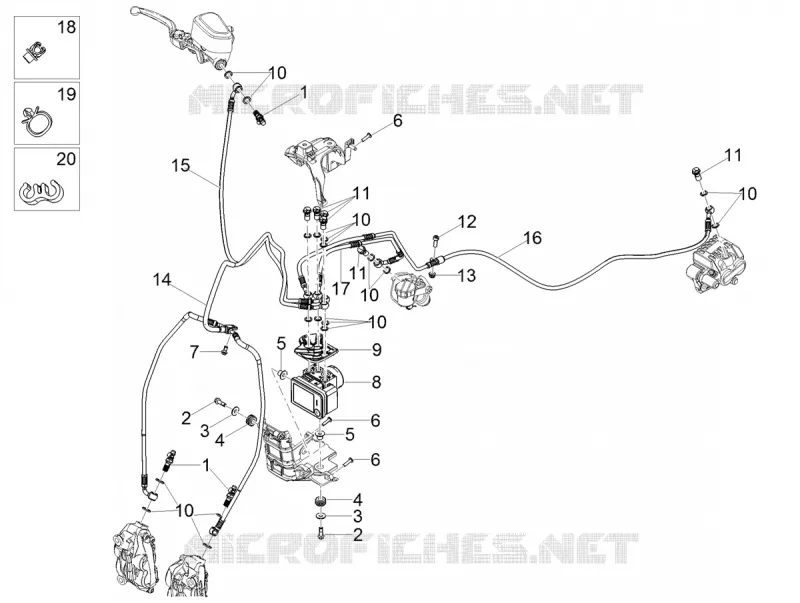

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
