Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
THROTTLE BODY
6
Parts Diagram
Parts Catalog
Timing system
by
Cylinder head cover
THROTTLE BODY
1
1
2
3
3
4
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
1
Joint
1A009167
Not Available
2
Raccord d'admission D.
1A009154
Not Available
3
Collier
CM258302
£3,96 Unit Price incl. VAT
4
Manchon corps papil.
1A014996
Not Available
5
Raccord d'admission G.
1A009088
Not Available
6
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
7
screw
GU98622322
£1,02 Unit Price incl. VAT
8
Injector
1D001393
£196,81 Unit Price incl. VAT
9
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
10
Hose clamp D50-70x8*
AP8102401
£18,49 Unit Price incl. VAT
11
Raccord
1A008090
Not Available
12
Gasket
872264
£7,12 Unit Price incl. VAT
13
Throttle body
872230
Not Available
14
T bushing
887282
£5,08 Unit Price incl. VAT
15
Hex socket screw M6x55
AP8150045
£4,78 Unit Price incl. VAT
16
Air temp. Sensor
887015
£152,92 Unit Price incl. VAT
17
Screw w/ flange M6x16
2B002418
£3,24 Unit Price incl. VAT
18
Crinkle washer D15 F8,4 S1,5 - INOX
658837
£0,95 Unit Price incl. VAT

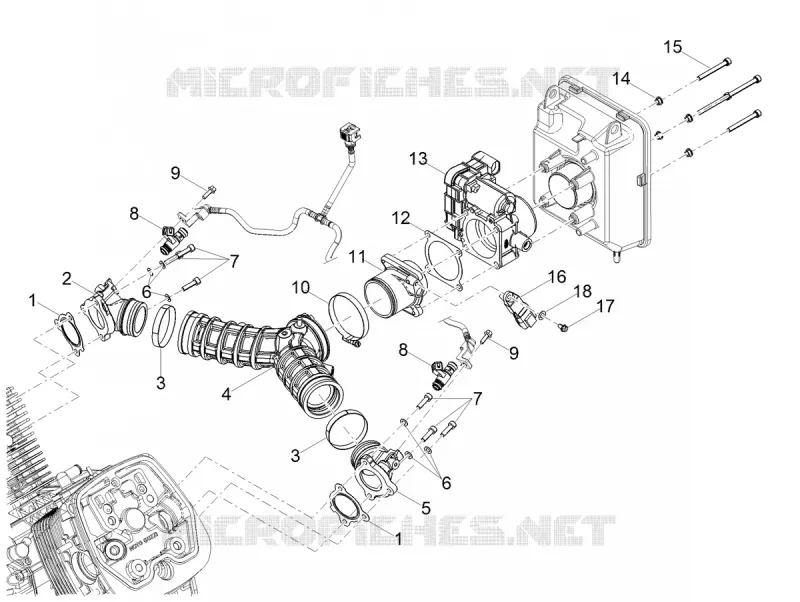

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
