1
Engine displacement
850
2
Model
V85
3
Year
2020
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
STEERING
ABS BRAKE SYSTEM
1
1
2
2
3
3
4
4
5
5
6
6
6
7
8
9
10
10
10
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
1
DOUILLE
978466
£55,46 Unit Price incl. VAT
2
screw 6X20
00H02402282
Not Available
3
Rondelle
AP8150015
£1,88 Unit Price incl. VAT
4
Caoutchouc
AP8120030
£1,38 Unit Price incl. VAT
5
"Douille en ""T"" *"
AP8221023
£1,64 Unit Price incl. VAT
6
Vis SWP crois. brid.
AP8152329
£1,80 Unit Price incl. VAT
7
Vis bride
2B005143
£0,42 Unit Price incl. VAT
8
Centrale
2D000453
£1 016,22 Unit Price incl. VAT
9
Plaque
2B005287
£26,95 Unit Price incl. VAT
10
Rondelle
AP8113004
£1,87 Unit Price incl. VAT
11
Vis spéciale
1C001209
Not Available
12
Vis bride
AP8152273
£1,88 Unit Price incl. VAT
13
Self-locking nut M5
AP8152306
Not Available
14
Tube frein
2B005374
£95,21 Unit Price incl. VAT
15
Tube frein
2B005373
£49,13 Unit Price incl. VAT
16
Tube frein
2B005376
£94,74 Unit Price incl. VAT
17
Tube frein
2B005375
£47,78 Unit Price incl. VAT
18
Guide-câble
AP8121882
£6,35 Unit Price incl. VAT
19
RESSORT
641652
£2,59 Unit Price incl. VAT
20
COLLIER
2B000276
£1,86 Unit Price incl. VAT

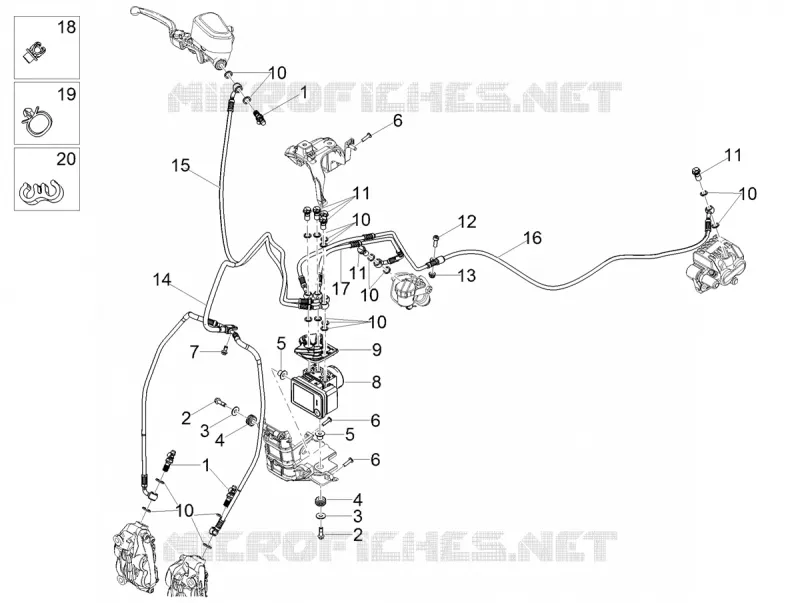

Find the detailed ABS BRAKE SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
