1
Engine displacement
850
2
Model
V85
3
Year
2020
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
SHOCK ABSORBER
by
REAR WHEEL

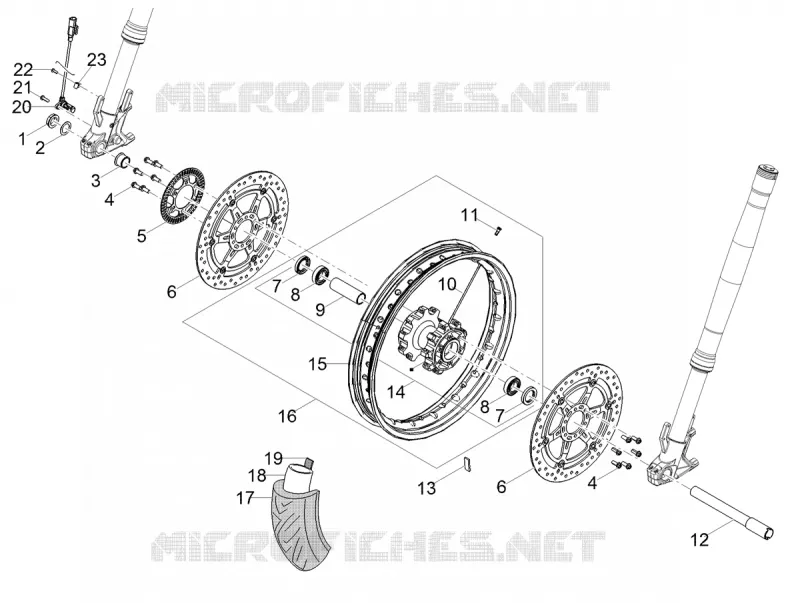

Front wheel
1
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
1
Nut
GU01612190
£10,82 Unit Price incl. VAT
2
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
3
Spacer
978498
£16,44 Unit Price incl. VAT
4
Screw w/ flange M8x20
2B002416
£3,86 Unit Price incl. VAT
5
Roue phonique ABS
2B004778
£17,30 Unit Price incl. VAT
6
Front brake disc 320
883688
£303,14 Unit Price incl. VAT
7
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
8
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
9
Spacer
978516
£42,07 Unit Price incl. VAT
10
Rayon
2B004304
£10,61 Unit Price incl. VAT
11
Nipples
GU03631250
£5,17 Unit Price incl. VAT
12
Axe de roue AV
2B004305
Not Available
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
14
Muyeu av.
2B005446
£424,58 Unit Price incl. VAT
15
Roue 2,50x19"
2B0043035
£279,54 Unit Price incl. VAT
16
Roue avant avec roulements
2B004300
£493,85 Unit Price incl. VAT
17
Pneu avant 110/80 R 19 59V TL/TT Michelin
2B006067
£419,38 Unit Price incl. VAT
17
Pneu AV 110/80 R19 M/C 59V TL Pirelli
2B004302
£440,27 Unit Price incl. VAT
18
Chambre à air
2B005858
£44,80 Unit Price incl. VAT
19
Flap roue avant
2B006085
£16,42 Unit Price incl. VAT
20
Sensor ABS
859792
Not Available
21
TBEI TORX screw M5x16 INOX
1C001499
£3,38 Unit Price incl. VAT
22
Hex socket screw
581957
£0,30 Unit Price incl. VAT
23
Fairlead
859777
£8,06 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
