Engine displacement
850
2
Model
V85
3
Year
2020
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
Timing system
6

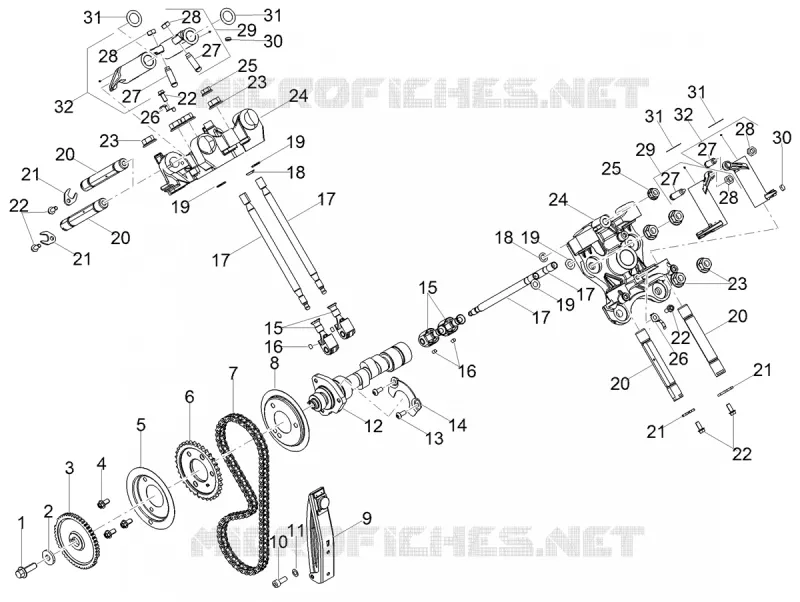

Parts Diagram
Parts Catalog
FLYWHEEL COVER
by
Blow-by system
Timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
16
17
17
17
17
17
17
17
17
18
18
19
19
19
19
20
20
20
20
21
21
21
21
21
21
21
21
21
21
22
22
22
23
23
23
24
24
25
25
26
26
27
27
27
27
28
28
28
28
29
29
30
30
31
31
31
31
32
32
1
Vis TEF M8x25
1A014977
Not Available
2
Rondelle
840569
£2,39 Unit Price incl. VAT
3
Phonic wheel
1A013570
Not Available
4
Vis bride
878872
£2,48 Unit Price incl. VAT
5
Tôle rétention
1A014673
Not Available
6
Timing system gear
1A006243
Not Available
7
Camshaft chain
GU19058021
£205,50 Unit Price incl. VAT
8
Plate
1A005955
Not Available
9
Chain stretching drive
GU19058220
Not Available
10
screw
GU98882316
£0,89 Unit Price incl. VAT
11
Washer
GU95129115
£0,86 Unit Price incl. VAT
12
Arbre à cames
1A013734
Not Available
13
Vis m5x12 torx
1A015041
Not Available
14
Camshaft retaining plate
1A009346
Not Available
15
Roulement à galets
1A0101245
Not Available
15
Roulement à galets
1A0136715
Not Available
16
Roller
B013552
£3,35 Unit Price incl. VAT
17
Culbuteur tige
1A013652
Not Available
17
Culbuteur tige
1A012793
Not Available
18
Gasket ring
1A006861
Not Available
19
O-Ring seal ring 2,62x9.19
2A000579
£1,87 Unit Price incl. VAT
20
Axe culbuteur
1A011963
Not Available
21
Fourchette
1A015559
Not Available
21
Fourchette
1A017540
£36,36 Unit Price incl. VAT
22
Vis m5x12 torx
1A015041
Not Available
23
Nut M10x1,25
825694
Not Available
24
Support culbuteur
1A013883
Not Available
25
Flanged nut M8x1.25
1A006659
Not Available
26
Plate
2A000527
£11,90 Unit Price incl. VAT
27
Adjuster screw
1A004907
Not Available
28
Nut
GU10034100
£13,40 Unit Price incl. VAT
29
Left exhaust right intake rocker
1A004905
Not Available
30
Embout soupape
1A011723
Not Available
31
Curved spring washer
1A005951
Not Available
32
Right exhaust left intake rocker
1A004903
Not Available
