Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
FUEL EVAP SYSTEM
6
Parts Diagram
Parts Catalog
FUEL TANK
by
GEAR CHANGE MECHANISM
FUEL EVAP SYSTEM
1
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
Screw w/ flange M5x12
AP8152302
Not Available
2
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
3
RESSORT
CM006903
£3,58 Unit Price incl. VAT
4
PLAQUETTE
254485
£1,64 Unit Price incl. VAT
5
Patte
2B004991
£23,21 Unit Price incl. VAT
6
Clip
AP8102375
£2,20 Unit Price incl. VAT
7
Vis SWP crois. brid.
AP8152329
£1,80 Unit Price incl. VAT
8
Patte
2B005243
£28,99 Unit Price incl. VAT
9
CANISTER
2B005142
£247,20 Unit Price incl. VAT
10
Collier serr. Tube
AP8102738
£7,85 Unit Price incl. VAT
11
Collier clic
AP8101586
£3,97 Unit Price incl. VAT
12
Tuyau SAE SAE 30 R12A
2B004280
£38,34 Unit Price incl. VAT
13
Tuyau
2B005857
£50,41 Unit Price incl. VAT
14
Collier clic
AP8102239
£3,06 Unit Price incl. VAT
15
VOLET
CM179008
£43,78 Unit Price incl. VAT
16
TUYAU
856063
£63,43 Unit Price incl. VAT
17
Collier clic
AP8102764
£3,25 Unit Price incl. VAT
18
Collier
GU93304390
£2,06 Unit Price incl. VAT
19
Collier serr. Tube
AP8102520
£2,08 Unit Price incl. VAT
20
Guide tuyau
2B007930
£13,97 Unit Price incl. VAT

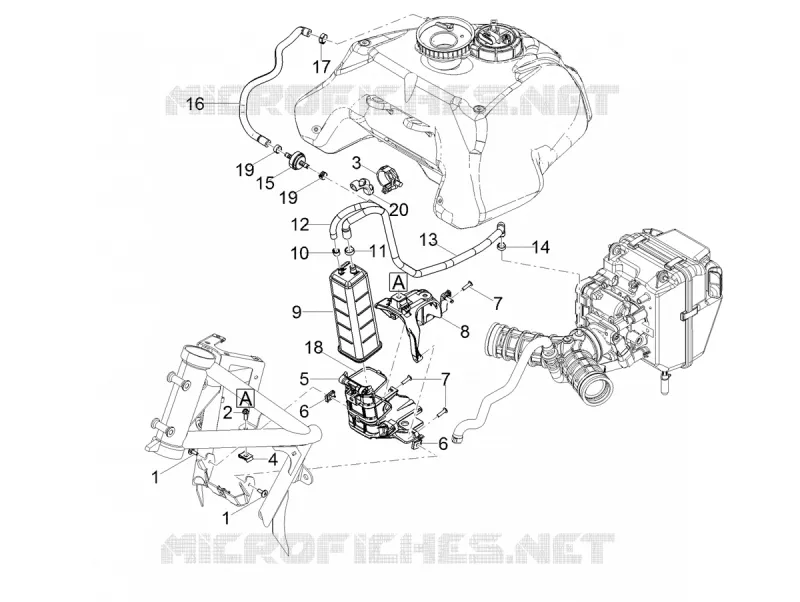

Find the detailed FUEL EVAP SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
