1
Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog

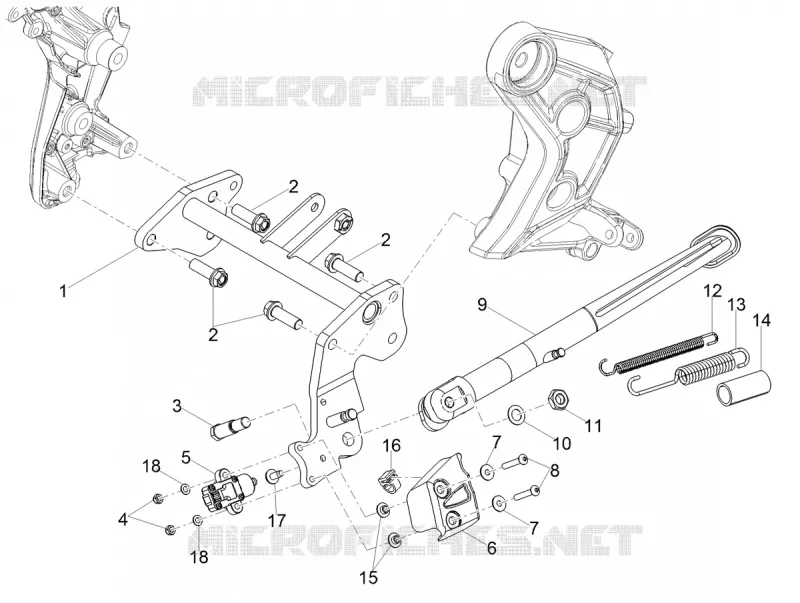

STAND
6
Parts Diagram
Parts Catalog
Gear selector
by
Protection
STAND
1
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
1
Support béquille
2B005598
£129,48 Unit Price incl. VAT
2
Screw w/ flange
AP8152320
£3,11 Unit Price incl. VAT
3
Pivot
852093
£14,14 Unit Price incl. VAT
4
Low self-locking nut
AP8150311
£0,07 Unit Price incl. VAT
5
Lateral stand switch
AP8127856
Not Available
6
Protection
858941
£10,38 Unit Price incl. VAT
7
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
8
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
9
Béquille latérale
2B005614
Not Available
10
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
11
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
12
Internal lateral stand spring
AP8221211
£2,69 Unit Price incl. VAT
13
Lateral stand spring
AP8221204
£10,78 Unit Price incl. VAT
14
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
15
T bush
843213
£1,27 Unit Price incl. VAT
16
Black cable guide
AP8201727
£1,14 Unit Price incl. VAT
17
Plug
AP8120876
£8,23 Unit Price incl. VAT
18
Washer 5,3X10X1
GU95008305
£2,47 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
