1
Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog

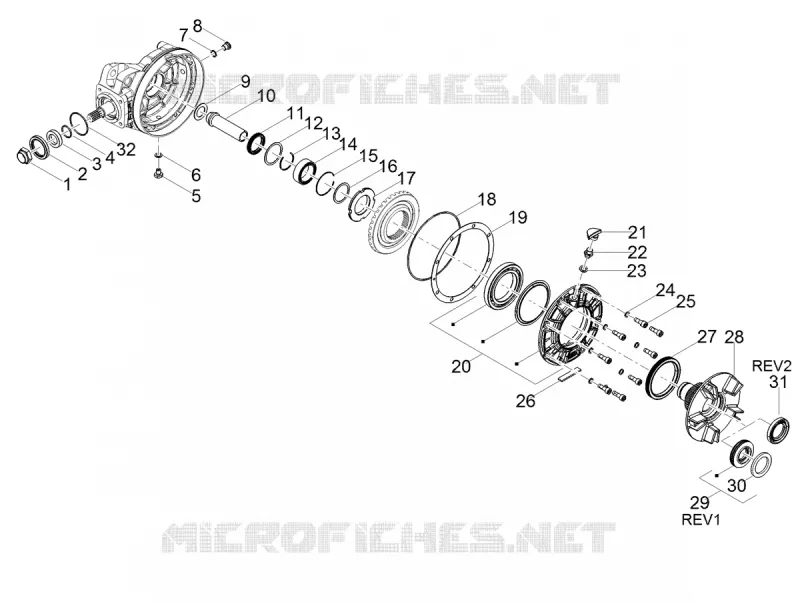

Rear transmission / Components
6
Parts Diagram
Parts Catalog
EXHAUST
by
AIR BOX
Rear transmission / Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
1
Ecrou
2B005012
£12,68 Unit Price incl. VAT
2
Gasket ring
2B000404
£27,80 Unit Price incl. VAT
3
Spacer
2B001311
£25,54 Unit Price incl. VAT
4
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
5
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
6
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
7
Washer
224566
£0,83 Unit Price incl. VAT
8
Oil plug M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
9
Washer
GU37359005
£13,40 Unit Price incl. VAT
10
Spacer
2B001307
£21,20 Unit Price incl. VAT
11
Gasket ring 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
12
Gasket ring
GU12351100
£70,49 Unit Price incl. VAT
13
Washer for shafts
2B002200
£1,13 Unit Price incl. VAT
14
Roulement 40x55x17
2B006088R
£99,61 Unit Price incl. VAT
15
Circlip
B064304
£2,72 Unit Price incl. VAT
16
Clearance washer
GU19351100
£2,22 Unit Price incl. VAT
17
Crown fixing ring nut
2B002536
£25,44 Unit Price incl. VAT
18
O-ring 158,42X2,62
GU90706958
£3,44 Unit Price incl. VAT
19
Spacer 0,7 mm
GU04355101
£21,19 Unit Price incl. VAT
19
Spacer 1,2 mm
GU04355106
£16,84 Unit Price incl. VAT
19
Spacer 0,6 mm
GU04355100
£19,32 Unit Price incl. VAT
19
Spacer 1,1 mm
GU04355105
£17,92 Unit Price incl. VAT
19
Spacer 0,8 mm
GU04355102
£20,34 Unit Price incl. VAT
19
Spacer 0,9 mm
GU04355103
£17,09 Unit Price incl. VAT
19
Spacer 1 mm
GU04355104
£18,61 Unit Price incl. VAT
20
Bride compléte
2B0061105
£187,08 Unit Price incl. VAT
21
Cap
2B002807
£4,22 Unit Price incl. VAT
22
Breather plug
2A000823
£11,11 Unit Price incl. VAT
23
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
24
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
25
Special cap screw 8x25
2B002171
£0,86 Unit Price incl. VAT
26
Feutre
2B006064
£4,32 Unit Price incl. VAT
27
Gasket ring 80x100x10
2B002535
£28,87 Unit Price incl. VAT
28
Tampons caoutchouc pour moyeu
2B004268
Not Available
28
Tampons caoutchouc pour moyeu
2B006860R
£236,35 Unit Price incl. VAT
29
Seal rings kit "REV1"
2B0072291
£8,14 Unit Price incl. VAT
30
Entretoise
2B007715
£18,04 Unit Price incl. VAT
31
Bague d'étanchéité 26x42x7
2B007243
£4,45 Unit Price incl. VAT
32
Gasket 58,42x2,62
GU90706584
£1,60 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
