1
Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
Blow-by system
6
Parts Diagram
Parts Catalog
Timing system
by
STICKERS
Blow-by system
1
1
1
1
1
2
3
3
4
5
6
7
8
9
10
11
1
Collier clic, blanc
AP8102349
£10,54 Unit Price incl. VAT
2
Tuyau
2B005445
£87,24 Unit Price incl. VAT
3
Collier
CM226902
£1,42 Unit Price incl. VAT
4
Soupape de retenue
2B003105
£31,60 Unit Price incl. VAT
5
Vis
AP8150500
£2,18 Unit Price incl. VAT
6
Serre-câble
AP8114502
£9,77 Unit Price incl. VAT
7
Tuyau Blow-by
2B006204
£13,09 Unit Price incl. VAT
8
Tuyau Blow-by
2B006203
£14,32 Unit Price incl. VAT
9
Raccord en "T"
2B0061249
£9,40 Unit Price incl. VAT
10
Tuyau Blow-by
2B006205
£14,72 Unit Price incl. VAT
11
COLLIER
CM002912
£0,24 Unit Price incl. VAT

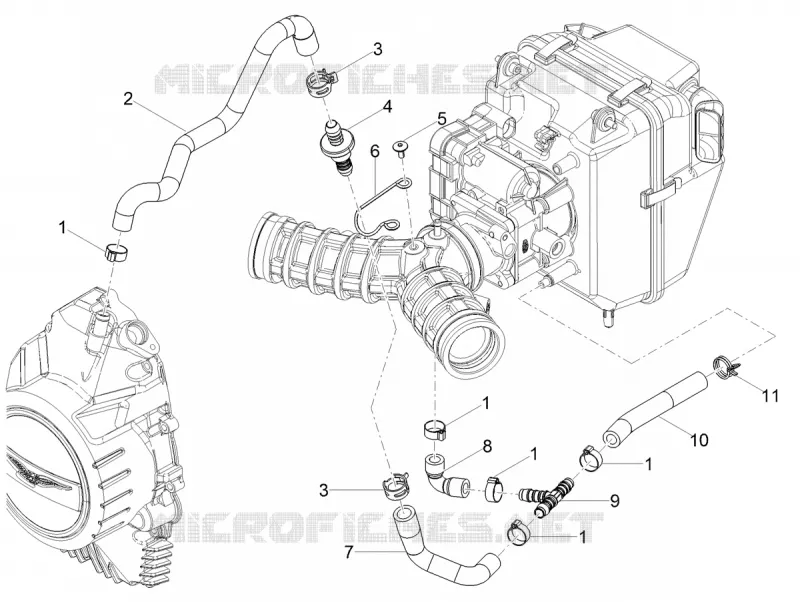

Find the detailed Blow-by system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
