Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
CYLINDER - PISTON
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
Frame/bodywork
CYLINDER - PISTON
1
1
2
2
2
2
2
2
2
2
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
1
Cylindre av.piston
1A0153455
Not Available
2
Piston complet cat.M
1A0152720M
Not Available
2
Piston complet cat.H
1A0152720H
Not Available
2
Piston complet cat.G
1A0152720G
Not Available
2
Piston complet cat.L
1A0152720L
Not Available
3
Segment
1A013936
£32,28 Unit Price incl. VAT
4
Segment
1A004954
£26,20 Unit Price incl. VAT
5
Segment
1A004955
Not Available
6
Circlips
1A011548
Not Available
7
Axe
1A008933
Not Available
8
Gicleur carter
825597
£2,35 Unit Price incl. VAT
9
Bague
GU19021360
£19,37 Unit Price incl. VAT
10
ECROU
288245
£0,76 Unit Price incl. VAT
11
PIVOT DE CENTR.
484993
£1,16 Unit Price incl. VAT
12
Joint cylindre
1A010855
Not Available

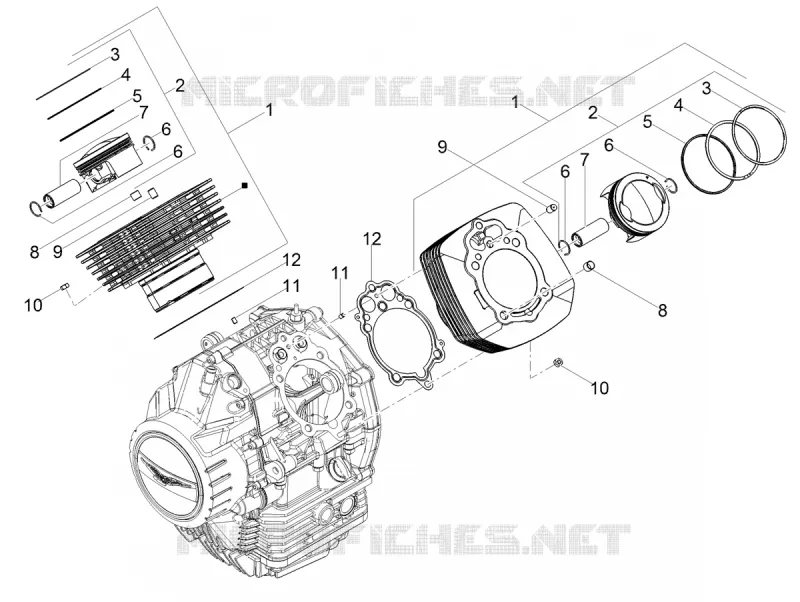

Find the detailed CYLINDER - PISTON MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
