Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
CLUTCH
CYLINDER HEAD - VALVES
1
1
1
1
1
1
2
2
2
3
4
4
5
5
6
6
7
7
7
8
8
8
9
9
9
10
10
10
11
11
12
12
13
14
14
15
15
16
16
1
JOINT CULASSE
1A004661
Not Available
1
Joint tête-cylindre
1A004662
Not Available
1
JOINT CULASSE
1A004660
Not Available
2
Gicleur carter
825597
£2,35 Unit Price incl. VAT
3
Téte d.guides desoupapes
1A0151195
Not Available
4
Téte g.guides desoupapes
1A0151165
Not Available
5
Soupape d'admission
1A013108
Not Available
6
Soupape d’échappement
1A014459
Not Available
7
Vis sans tête
1A003632R
£2,35 Unit Price incl. VAT
8
Rondelle d'ar
1A004751
Not Available
9
Joint spie
1A003452
£7,75 Unit Price incl. VAT
10
Ressort de rappel soupape
1A011173
Not Available
11
Rondelle d'ar
1A004750
Not Available
12
Demi-clavette
871640
£4,10 Unit Price incl. VAT
13
Anneau élastique
GU90353009
£1,02 Unit Price incl. VAT
14
Rondelle d'ar
1A012899
Not Available
15
Demi-clavette
1A011722
Not Available
16
Terminal
1A011723
Not Available

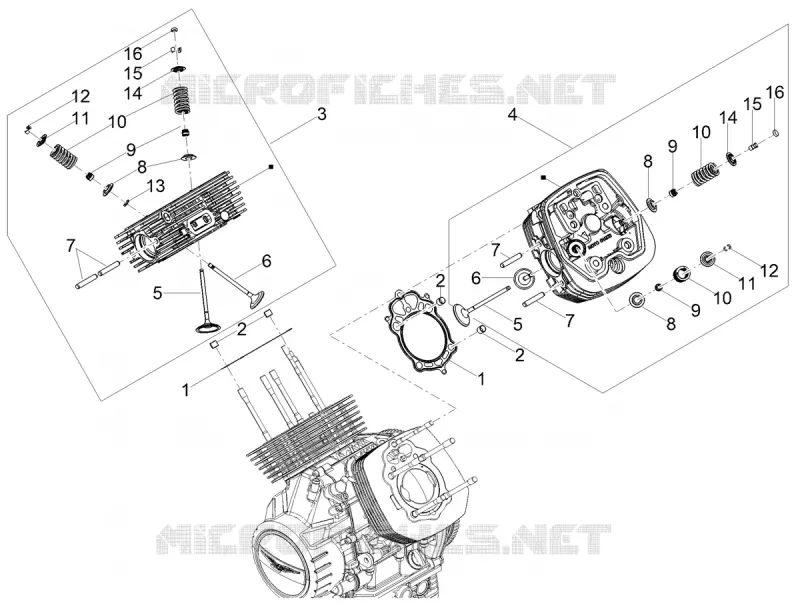

Find the detailed CYLINDER HEAD - VALVES MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
