1
Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
CLUTCH LEVER
6
Parts Diagram
Parts Catalog
HANDLEBAR - CONTROLS
by
Front headlamps
CLUTCH LEVER
1
2
3
4
5
6
7
8
9
10
11
1
Levier embrayage complet
2B004720
£170,72 Unit Price incl. VAT
2
Câble embrayage
2B005851
£40,49 Unit Price incl. VAT
3
Vis
2B006308
£4,42 Unit Price incl. VAT
4
Cavalier
856050
£9,41 Unit Price incl. VAT
5
Réglage
2B004721
£48,46 Unit Price incl. VAT
6
RESSORT
2B006307
£4,70 Unit Price incl. VAT
7
Vis
2B006306
£1,87 Unit Price incl. VAT
8
Interrupteur
2D000497
£103,82 Unit Price incl. VAT
9
VIS
654174
£1,27 Unit Price incl. VAT
10
Levier embrayage
2B007401
£88,90 Unit Price incl. VAT
11
Entretoise
2B007402
£2,71 Unit Price incl. VAT

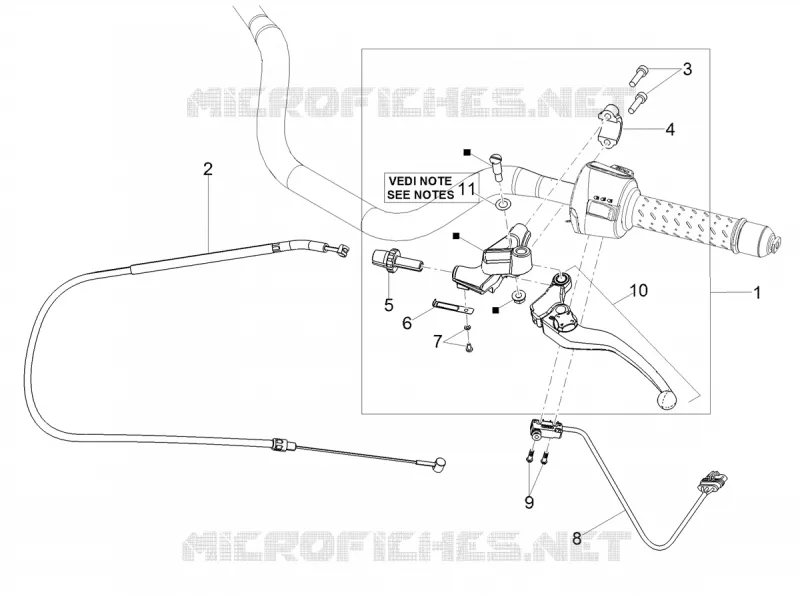

Find the detailed CLUTCH LEVER MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
