Parts Catalog
CENTRAL ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
FRONT ELECTRICAL SYSTEM
by
REAR ELECTRICAL SYSTEM
CENTRAL ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
1
Faisceau de câbles
2D000444
£703,55 Unit Price incl. VAT
2
Vis M5X25
GU98680225
£5,28 Unit Price incl. VAT
3
Rondelle
AP8150248
£0,98 Unit Price incl. VAT
4
SENSOR DE CHUTE
642248
£91,73 Unit Price incl. VAT
5
Self-locking nut M5
AP8152306
Not Available
6
Câblage
2D000494
£22,70 Unit Price incl. VAT
7
Relais 12V/30A
AP8224462
£24,32 Unit Price incl. VAT
8
Caoutchouc
AP8220283
£2,39 Unit Price incl. VAT
9
Relais starter
895481
£19,52 Unit Price incl. VAT
10
Caoutchouc
896715
£7,33 Unit Price incl. VAT
11
Screw w/ flange M5x12
AP8152302
Not Available
12
Rivet, femelle
AP8144616
£3,20 Unit Price incl. VAT
13
Rivet, mâle
AP8144563
£3,10 Unit Price incl. VAT
14
RESSORT
B005629
£1,99 Unit Price incl. VAT
15
RESSORT
CM013203
£2,45 Unit Price incl. VAT
16
Support
890760
£16,21 Unit Price incl. VAT
17
Prise USB
1D002753
Not Available
18
Support
2B005590
£18,41 Unit Price incl. VAT
19
PASSE CABLES
1B001591
£3,90 Unit Price incl. VAT

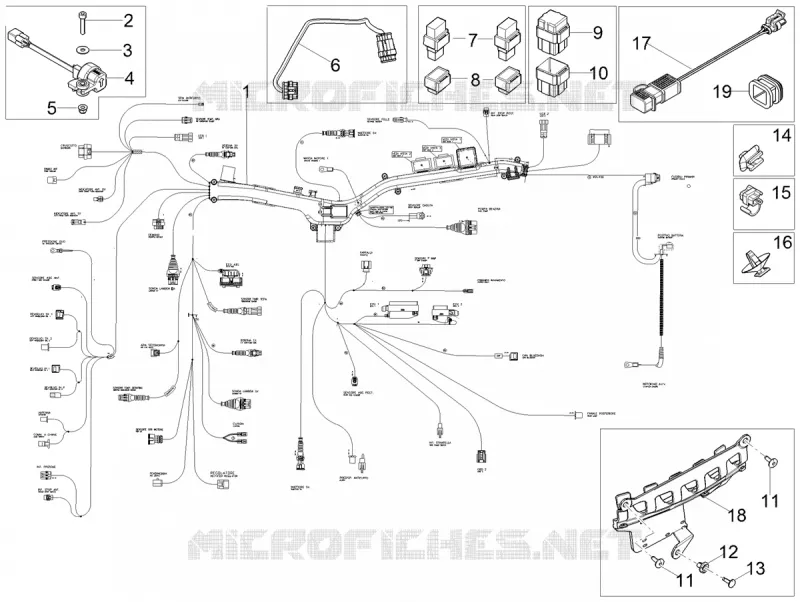

Find the detailed CENTRAL ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
