Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
FOOTRESTS
by
CENTRAL ELECTRICAL SYSTEM
FRONT ELECTRICAL SYSTEM
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Faisceau de câbles
2D000444
£703,55 Unit Price incl. VAT
2
Vis bride
AP8152280
£2,48 Unit Price incl. VAT
3
Passe-câble
1A014724
Not Available
4
Bobine H.T.
641901
£118,08 Unit Price incl. VAT
5
Ecrou autofr. bas
AP8150430
£1,27 Unit Price incl. VAT
6
Câble H.T.
CM277103
£146,80 Unit Price incl. VAT
7
Bougie
1A010638
£39,02 Unit Price incl. VAT
8
Klaxon
2D000454
£43,02 Unit Price incl. VAT
9
Vis bride
AP8152285
£1,88 Unit Price incl. VAT
10
RONDELLE
658837
£0,95 Unit Price incl. VAT
11
Vis bride
AP8152281
£1,80 Unit Price incl. VAT
12
REGULATEUR
640698
£185,75 Unit Price incl. VAT
13
PLAQUETTE
254485
£1,64 Unit Price incl. VAT
14
Détec. temper. air
AP8124936
£82,98 Unit Price incl. VAT
15
Encoder sensor
832029
Not Available
16
Vis TCEI M6x14
GU98682314
£1,26 Unit Price incl. VAT
17
JOINT O RING
847180
£2,83 Unit Price incl. VAT

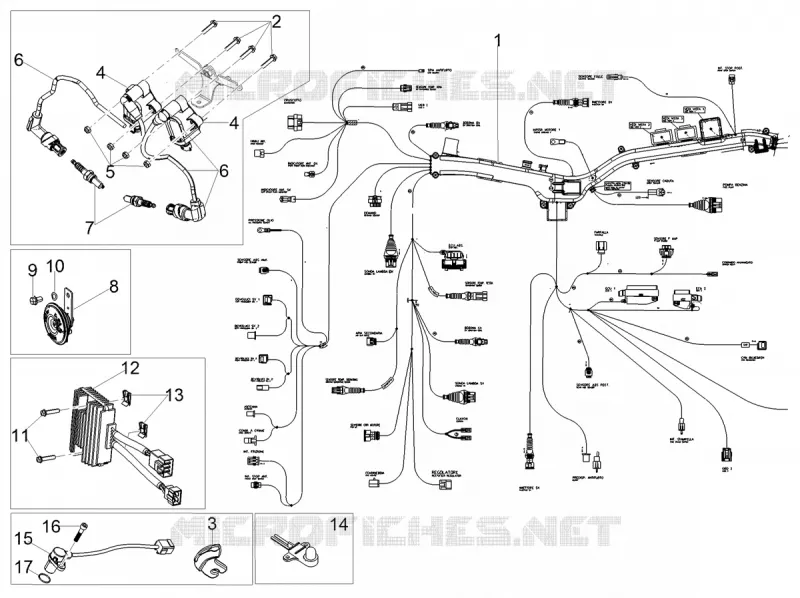

Find the detailed FRONT ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
