Parts Catalog
REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
CENTRAL ELECTRICAL SYSTEM
by
SADDLE COMPARTMENT
REAR ELECTRICAL SYSTEM
1
1
2
2
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Vis taraud 5x14
AP8150509
£1,94 Unit Price incl. VAT
2
Rondelle
AP8150382
£1,88 Unit Price incl. VAT
3
Caoutchouc
AP8220150
£3,13 Unit Price incl. VAT
4
Centrale
CM281714
£626,20 Unit Price incl. VAT
4
Centrale injection électronique
CM281722
Not Available
5
Support centrale
858882
£16,07 Unit Price incl. VAT
6
Faisc. de câbles
2D000493
£81,40 Unit Price incl. VAT
7
BATTERIE YUASA 12V/14AH YTX14BS
638733
£195,61 Unit Price incl. VAT
7
BATTERIE PTX14-BS (12V 12Ah)
1R000319
£119,12 Unit Price incl. VAT
8
Boîte à fusibles
894603
£22,57 Unit Price incl. VAT
9
Fusible
CM225615
£5,77 Unit Price incl. VAT
10
Fusible
CM225607
£4,74 Unit Price incl. VAT
11
Caoutchouc p-fusibles
AP8112811
£11,53 Unit Price incl. VAT
12
Fusible
CM225730
£4,74 Unit Price incl. VAT
13
Fusible
CM225720
£4,74 Unit Price incl. VAT
14
RESSORT
CM013203
£2,45 Unit Price incl. VAT
15
Faisceau de câbles
2D000444
£703,55 Unit Price incl. VAT
16
Couvercle connecteur
1D002384
£4,90 Unit Price incl. VAT
17
PASSE CABLE
109355
£5,18 Unit Price incl. VAT
18
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
19
Eponge adhésive;
AP8117200
£13,44 Unit Price incl. VAT

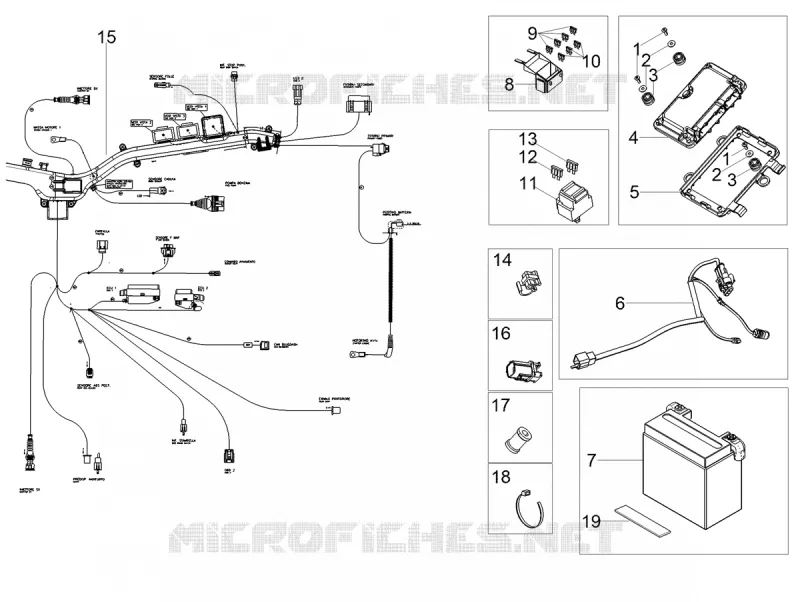

Find the detailed REAR ELECTRICAL SYSTEM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
