Engine displacement
850
2
Model
V85
3
Year
2019
4
Trim
V85 TT 850 Euro 4 ABS
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
CYLINDER - PISTON
by
CRANKSHAFT
Frame/bodywork
1
1
2
2
2
3
4
5
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
25
26
27
28
28
29
30
1
Châssis
2B005033000YR8
£1 939,07 Unit Price incl. VAT
1
Chassis
2B005033000YE9
£1 939,07 Unit Price incl. VAT
2
Vis bride
2B006398
£4,86 Unit Price incl. VAT
3
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
4
Patte
2B005144
£27,61 Unit Price incl. VAT
5
PLAQUETTE
254485
£1,64 Unit Price incl. VAT
6
Douille
2B004675
£8,80 Unit Price incl. VAT
7
Support
2B005419
£13,79 Unit Price incl. VAT
8
RONDELLE
658837
£0,95 Unit Price incl. VAT
9
Vis bride
AP8152285
£1,88 Unit Price incl. VAT
10
Ecrou M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
11
Rondelle 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
12
Vis
AP8150412
£13,28 Unit Price incl. VAT
13
Vis
AP8150048
£2,48 Unit Price incl. VAT
14
Patte-sup. silenc.
2B005039
£65,98 Unit Price incl. VAT
15
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
16
Washer 6,4x10x0,7
GU14217901
Not Available
17
Bouchon MOYEU
978301
£6,60 Unit Price incl. VAT
18
Vis
AP8150287
£5,14 Unit Price incl. VAT
19
Vis
2B001230
£27,36 Unit Price incl. VAT
20
Rondelle élastique courbe
AP8150210
£1,27 Unit Price incl. VAT
21
Ecrou M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
22
Vis
GU98682635
£2,17 Unit Price incl. VAT
23
Douille
2B005686
£11,86 Unit Price incl. VAT
24
Plaque g.
2B005623
£232,58 Unit Price incl. VAT
25
Plaque
2B005513
£232,58 Unit Price incl. VAT
26
Petit couvercle
2B005804
£6,76 Unit Price incl. VAT
27
Vis
AP8150500
£2,18 Unit Price incl. VAT
28
Douille
2B005849
£6,83 Unit Price incl. VAT
29
Vis
AP8150049
£13,28 Unit Price incl. VAT
30
Bouchon
AP8102600
£0,61 Unit Price incl. VAT

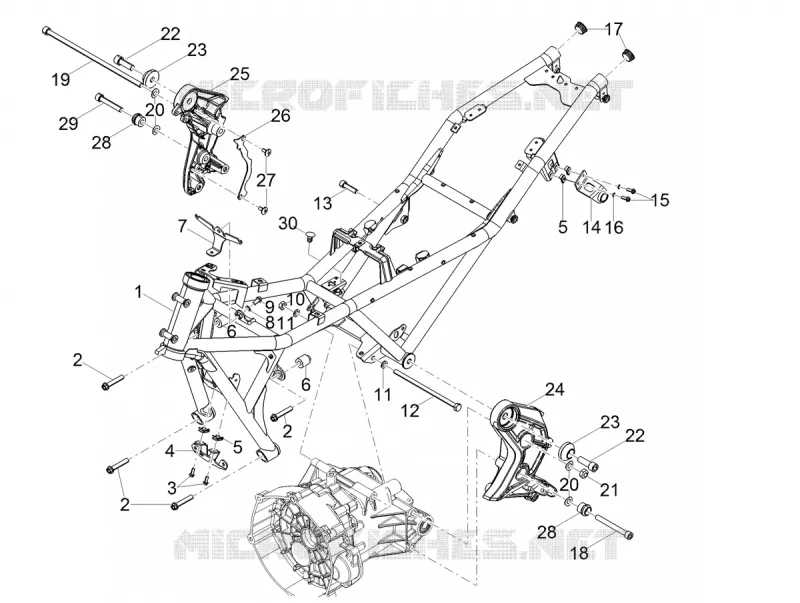

Find the detailed Frame/bodywork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
