Parts Catalog
Transmission complete I
6
Parts Diagram
Parts Catalog
Front body
by
Dashboard
Transmission complete I
1
2
2
2
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
15
16
16
17
18
18
19
19
19
19
19
19
19
19
19
19
20
20
20
20
21
21
21
21
22
23
24
24
25
25
25
25
25
25
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
Carter de transmission
GU01350300
Not Available
2
Ring
GU92259025
Not Available
2
Roller bearing
GU92252225
£78,40 Unit Price incl. VAT
3
Plaque ext.
GU37351006
Not Available
4
Plaque int.
GU01352100
Not Available
5
Pl.support paliers
GU01350900
£43,84 Unit Price incl. VAT
6
Oil plug
GU28351260
Not Available
7
Gasket 20,1x28x2
GU95100709
£5,29 Unit Price incl. VAT
8
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
9
Gasket
GU10528900
£4,45 Unit Price incl. VAT
10
Gasket ring
GU90403850
£12,80 Unit Price incl. VAT
11
Gasket ring
GU12351100
£70,49 Unit Price incl. VAT
12
Roller bearing 40x55x17
GU92254340
Not Available
13
Gasket ring
GU90403552
Not Available
14
Tap.roller bearing 25x5
GU92249227
£44,81 Unit Price incl. VAT
15
Flange
GU18352400
Not Available
16
Gasket 58,42x2,62
GU90706584
£1,60 Unit Price incl. VAT
17
Spacer
GU18355100
£16,14 Unit Price incl. VAT
18
Shim 0,1 mm
GU12355202
£2,04 Unit Price incl. VAT
18
Shim 0,15 mm
GU12355203
£1,61 Unit Price incl. VAT
19
Spacer 1,1 mm
GU19355321
£16,32 Unit Price incl. VAT
19
Spacer 1,7 mm
GU19355327
£16,18 Unit Price incl. VAT
19
Spacer 1,6 mm
GU19355326
£15,95 Unit Price incl. VAT
19
Spacer 1,3 mm
GU19355323
£14,56 Unit Price incl. VAT
19
Spacer 1,8 mm
GU19355328
£15,95 Unit Price incl. VAT
19
Spacer 1,4 mm
GU19355324
£15,95 Unit Price incl. VAT
19
Spacer 1 mm
GU19355320
£16,28 Unit Price incl. VAT
19
Spacer 1,9 mm
GU19355329
£15,95 Unit Price incl. VAT
19
Spacer 1,2 mm
GU19355322
£16,28 Unit Price incl. VAT
19
Spacer 1,5 mm
GU19355325
£16,32 Unit Price incl. VAT
20
screw
GU19357660
£1,02 Unit Price incl. VAT
20
screw
GU98054425
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
21
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
22
Plate
GU95187008
£4,94 Unit Price incl. VAT
23
Flange
GU17350400
£93,85 Unit Price incl. VAT
24
Gasket
GU17350700
£1,39 Unit Price incl. VAT
25
Spacer 1,1 mm
GU17355406
£12,00 Unit Price incl. VAT
25
Spacer 0,9 mm
GU17355402
£12,25 Unit Price incl. VAT
25
Spacer 1,5 mm
GU17355412
£14,65 Unit Price incl. VAT
25
Spacer 1,2 mm
GU17355408
£12,82 Unit Price incl. VAT
25
Spacer 0,8 mm
GU17355400
£11,06 Unit Price incl. VAT
25
Spacer 1 mm
GU17355404
£11,20 Unit Price incl. VAT
25
Spacer 1,3 mm
GU17355410
£14,65 Unit Price incl. VAT
26
Ball bearing 70x110x13
GU92201070
£129,37 Unit Price incl. VAT
27
Gasket ring
GU90407085
£32,02 Unit Price incl. VAT
28
Drive flange
GU17351400
Not Available
29
Bevel gear 8/33
GU30354602
£1 312,18 Unit Price incl. VAT
30
screw
GU12356300
£8,33 Unit Price incl. VAT
31
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
32
Nut
GU30356700
£138,38 Unit Price incl. VAT
33
Lock
GU30358100
Not Available
34
Clearance washer
GU18214650
Not Available
35
Washer
GU37359005
£13,40 Unit Price incl. VAT
36
Stud bolt
GU01357900
£15,86 Unit Price incl. VAT
37
screw
GU98610455
£13,94 Unit Price incl. VAT
38
screw
GU30558700
Not Available
39
screw
GU98054530
£1,91 Unit Price incl. VAT
40
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
41
Snap ring
GU90271020
£0,85 Unit Price incl. VAT
42
Self-locking nut
GU92630506
£0,68 Unit Price incl. VAT
43
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
44
Washer
GU95000210
Not Available

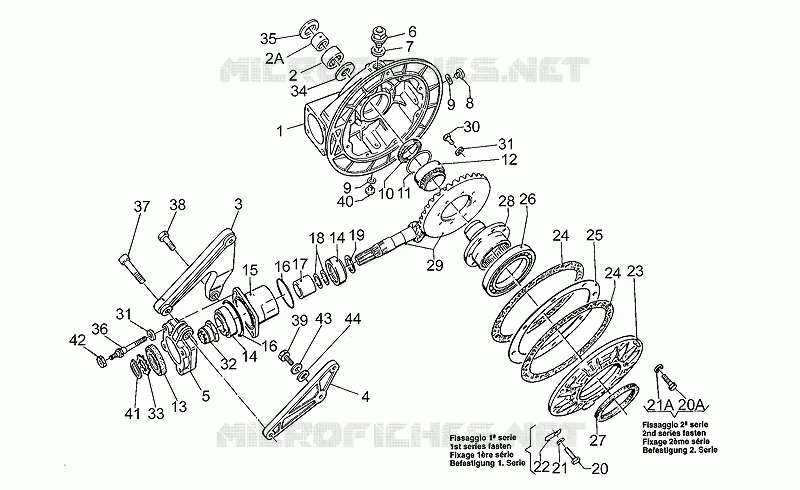

Find the detailed Transmission complete I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
