Engine displacement
1100
2
Model
SPORT
3
Year
1999
4
Trim
Sport Iniezione 1100
5
Parts Catalog
Gear-box components
6
Parts Diagram
Parts Catalog
Driven shaft
by
Crankcase
Gear-box components
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
14
14
14
15
15
15
15
16
17
17
17
17
18
19
20
21
22
1
Ring nut
GU93601022
£48,91 Unit Price incl. VAT
2
Washer 22x20x3,9
GU95028022
£2,04 Unit Price incl. VAT
3
Clutch gear
GU30081810
£136,22 Unit Price incl. VAT
4
O-ring 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
5
Clutch shaft
GU14210702
£79,61 Unit Price incl. VAT
6
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
7
Oil-spreading washer 25,1x36x0,5
GU14218401
£12,85 Unit Price incl. VAT
8
Gear Z=17
GU01211100
Not Available
8
Neutral gear Z=17
GU30211101
Not Available
9
Hose
GU30211260
£9,23 Unit Price incl. VAT
10
Belleville spring
GU30211560
£23,12 Unit Price incl. VAT
11
Disc
GU30211660
Not Available
12
Half ring
GU12211700
£11,64 Unit Price incl. VAT
13
Spacer
GU14219401
£21,67 Unit Price incl. VAT
14
Primary gear shaft
GU30210500
Not Available
14
Primary gear shaft
GU01210500
Not Available
15
Thrust washer sp.2
GU18211050
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,2
GU18211052
£10,39 Unit Price incl. VAT
15
Thrust washer sp.2,1
GU18211051
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,4
GU18211054
£12,89 Unit Price incl. VAT
16
Roller bearing
GU92258525
Not Available
17
Gear 5a Z=26
GU30212003
£138,44 Unit Price incl. VAT
17
Gear 5a Z=26
GU01212000
Not Available
18
Roller
GU92296750
£1,70 Unit Price incl. VAT
19
Spring
GU94321051
£1,91 Unit Price incl. VAT
20
Roller cage 30x35x13
GU92251030
£21,80 Unit Price incl. VAT
21
Bush 5a AP
GU14212210
£86,42 Unit Price incl. VAT
22
Sliding sleeve
GU30231500
Not Available

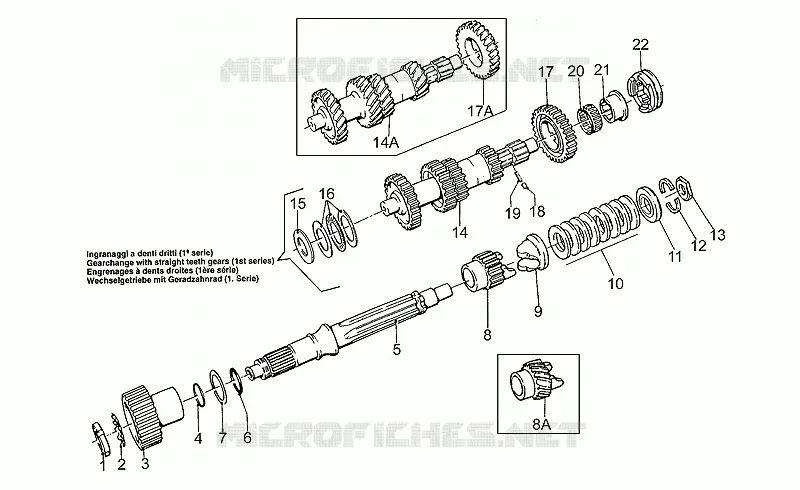

Find the detailed Gear-box components MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
