Engine displacement
1100
2
Model
SPORT
3
Year
1999
4
Trim
Sport Corsa 1100
5
Parts Catalog
Foot rests - Lateral stand
6
Parts Diagram
Parts Catalog
HANDLEBAR - CONTROLS
by
Front wheel
Foot rests - Lateral stand
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
20
19
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Béquille latérale
GU01432110
Not Available
2
Plaque béquille
GU01433410
Not Available
3
Vis
GU01432810
Not Available
4
Special washer
GU95021114
Not Available
5
Axe de béquille
GU01433210
Not Available
6
Plaque
GU01432710
Not Available
7
Outer spring
GU30434001
£24,11 Unit Price incl. VAT
8
Washer
GU95100521
£2,27 Unit Price incl. VAT
9
Inner spring
GU30434000
£17,05 Unit Price incl. VAT
10
Plaque
GU01433610
Not Available
11
Pad
GU93180575
£6,22 Unit Price incl. VAT
12
Maintenance
GU30442705
£37,67 Unit Price incl. VAT
13
screw
GU98251040
£7,50 Unit Price incl. VAT
14
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
15
RH Foot rests
GU30440705
Not Available
16
LH Foot rests
GU30441805
Not Available
17
Pin
GU30441005
Not Available
18
Return spring
GU30441105
Not Available
19
Pin
GU30442205
£25,78 Unit Price incl. VAT
20
Stop ring
GU90280006
£0,58 Unit Price incl. VAT
21
Support r-p. D pass.
GU01444610
Not Available
22
Support r-p. G pass.
GU01444710
Not Available
23
Rear footrest, RH
GU30442405
£89,47 Unit Price incl. VAT
24
Rear footrest, LH
GU30442805
£89,47 Unit Price incl. VAT
25
Footrest plate
GU30443105
£4,32 Unit Price incl. VAT
26
Spring
GU94321062
£2,45 Unit Price incl. VAT
27
Ball
GU92295706
£0,92 Unit Price incl. VAT
28
Plate
GU30441605
£3,41 Unit Price incl. VAT
29
Flanged nut
GU92660310
£2,48 Unit Price incl. VAT
30
Pipe
GU30433800
Not Available
31
Levier
GU01431910
Not Available
32
screw
GU98230615
Not Available
33
Washer 6,4x10x0,7
GU14217901
Not Available
34
screw
GU97040220
£1,18 Unit Price incl. VAT
35
Nut
GU92602205
£0,96 Unit Price incl. VAT
36
Plaquette
GU01433810
Not Available
37
Lateral stand switch
GU03759100
£74,75 Unit Price incl. VAT
38
Nut M8x1
GU92602508
Not Available
39
Stand switch wiring
GU02736200
Not Available

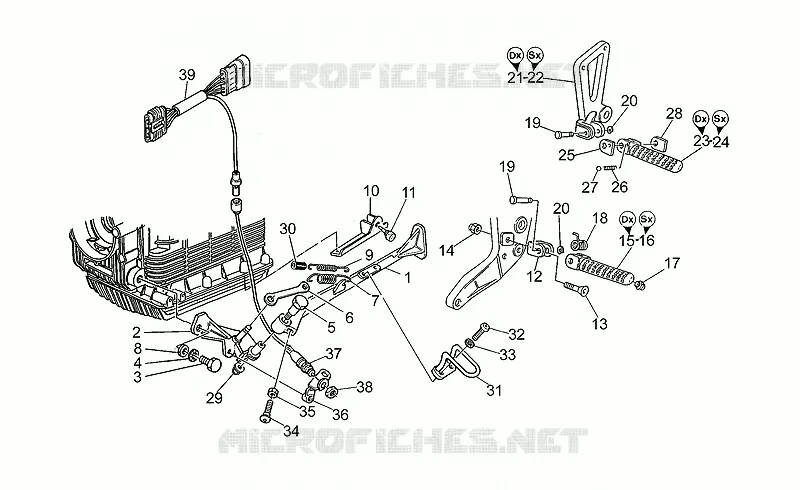

Find the detailed Foot rests - Lateral stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
