1
Engine displacement
1100
2
Model
SPORT
3
Year
1999
4
Trim
Sport Corsa 1100
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Air filter
by
Electrical system
Front fork
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
38
38
37
37
36
35
34
34
33
33
32
31
30
29
28
27
26
25
24
23
23
22
22
21
21
20
19
19
18
17
16
15
14
13
12
11
11
10
10
9
8
7
6
5
4
3
2
2
2
1
1
Base avec tube
GU01494010
Not Available
2
screw
GU98622430
£1,58 Unit Price incl. VAT
3
Plaque sup. fourche
GU01493110
£359,98 Unit Price incl. VAT
4
Plug
GU30513400
£44,71 Unit Price incl. VAT
5
Plug
GU23943410
£3,06 Unit Price incl. VAT
6
Decal "Aquilia"
GU01517700
£35,30 Unit Price incl. VAT
7
RH hub cpl.
GU01490601
Not Available
8
LH hub cpl.
GU01490701
£282,66 Unit Price incl. VAT
9
Nut
GU01530510
Not Available
10
Spring
GU01530511
Not Available
11
Calibration blade
GU01530512
Not Available
12
Piston
GU01530513
£179,50 Unit Price incl. VAT
13
O-ring
GU01530514
Not Available
14
Valve
GU01530515
Not Available
15
Piston
GU01530516
Not Available
16
Piston
GU01530517
Not Available
17
Nut
GU01530518
Not Available
18
RH needle rebound
GU01530519
Not Available
19
O-ring
GU01530520
£2,80 Unit Price incl. VAT
20
Adjuster unit
GU01530521
Not Available
21
O-ring
GU01530522
Not Available
22
LH wheel carrier
GU01530561
Not Available
22
RH wheel carrier
GU01530523
£1 406,26 Unit Price incl. VAT
23
RH plug
GU01530524
Not Available
23
LH plug
GU01530562
Not Available
24
pipe
GU01530525
Not Available
25
Hose
GU01530526
£112,33 Unit Price incl. VAT
26
Bushing
GU01530527
£11,89 Unit Price incl. VAT
27
Pad
GU01530528
Not Available
28
Stop ring
GU01530529
Not Available
29
Rod
GU01530530
Not Available
30
Spring
GU01530531
Not Available
31
Ring
GU01530532
£13,36 Unit Price incl. VAT
32
Stop ring
GU01530533
Not Available
33
Spring
GU01530534
Not Available
34
Ball
GU01530535
Not Available
35
Safety washer
GU01530536
Not Available
36
Spring
GU01530537
Not Available
37
Spacer H=2,5mm
GU01530538
Not Available
37
Spacer H=5mm
GU01530539
Not Available
38
Half ring
GU01530540
Not Available
39
Sleeve
GU01530541
Not Available
40
Bush
GU01530542
Not Available
41
Ring
GU01530543
Not Available
42
Gasket ring
GU01530544
Not Available
43
Spacer
GU01530545
Not Available
44
Stop ring
GU01530546
Not Available
45
O-ring
GU01530547
£9,60 Unit Price incl. VAT
46
Sleeve
GU01530548
£914,47 Unit Price incl. VAT
47
Washer
GU01530549
£69,12 Unit Price incl. VAT
48
Bushing
GU01530550
Not Available
49
Stop ring
GU01530551
£82,34 Unit Price incl. VAT
50
Washer
GU01530552
Not Available
51
screw
GU01530553
Not Available
52
O-ring
GU01530554
Not Available
53
Ring
GU01530555
£7,26 Unit Price incl. VAT
54
Maintenance
GU01530556
Not Available
55
Adjuster needle
GU01530557
Not Available
56
Adjuster unit
GU01530558
£270,40 Unit Price incl. VAT
57
Adjuster rod
GU01530559
£76,30 Unit Price incl. VAT
58
O-ring
GU01530560
£2,20 Unit Price incl. VAT
59
screw
GU98623430
Not Available
60
Washer
GU01530563
£11,04 Unit Price incl. VAT

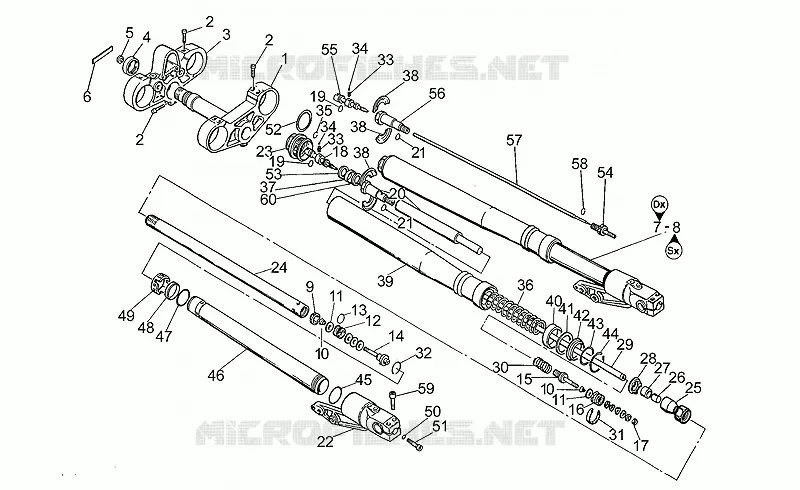

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
