Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
THROTTLE BODY
by
Oil filter
Timing system
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Rocker arm rod
GU37045006
£146,72 Unit Price incl. VAT
2
Tappet
GU17045860
£180,11 Unit Price incl. VAT
3
Camshaft
GU37053305
Not Available
4
Pin
GU14234600
£12,38 Unit Price incl. VAT
5
Flange
GU01054000
Not Available
6
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
7
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
8
Phonic wheel
GU01051700
Not Available
9
Timing system gear
GU01054500
Not Available
10
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
11
Nut M18X1,5
GU92602518
Not Available
12
Pinion
GU14072001
£34,61 Unit Price incl. VAT
13
Washer 25,5x35x2
GU95100837
£2,04 Unit Price incl. VAT
14
Nut M25
GU92602525
£22,02 Unit Price incl. VAT
15
Transmission key
GU91702355
£32,86 Unit Price incl. VAT
16
Chain
GU28058060
£47,76 Unit Price incl. VAT
17
Chain tensioner
GU30057810
Not Available
18
Hex screw
GU98052435
£2,04 Unit Price incl. VAT
19
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT

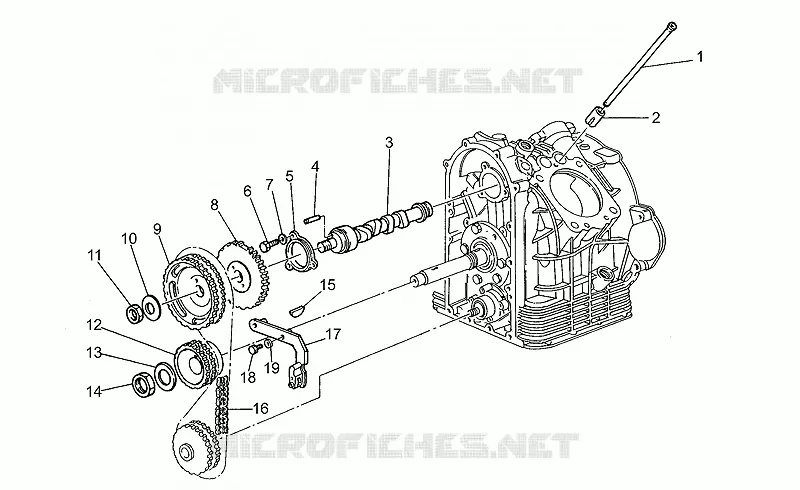

Find the detailed Timing system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
