Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Lateral stand
by
Foot rests I
Handlebar - Controls
1
2
3
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
1
Handlebar
GU06600300
£300,56 Unit Price incl. VAT
2
Upper U-bolt
GU06500600
£78,64 Unit Price incl. VAT
3
Screw M8x30
GU98700430
£7,98 Unit Price incl. VAT
4
Lower U-bolt
GU06500200
£101,90 Unit Price incl. VAT
5
Screw w/ flange
AP8152325
£2,66 Unit Price incl. VAT
6
LH lights selector
AP8127703
Not Available
7
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT
8
Anti.v weight, chr.
GU06602800
Not Available
9
Screw M6x50
GU98250650
£1,49 Unit Price incl. VAT
10
RH lights selector
B045021
£155,14 Unit Price incl. VAT
11
Throttle cpl.
GU05603331
£190,72 Unit Price incl. VAT
12
Throttle with hand grip
GU01603480
£30,84 Unit Price incl. VAT
13
Front gas lever U-bolt
AP8118502
£30,05 Unit Price incl. VAT
14
Cap screw
AP8118492
£12,65 Unit Price incl. VAT
15
Rear gas lever U-bolt
AP8118503
Not Available
16
Gas trasmission delivery
GU06117500
£60,10 Unit Price incl. VAT
17
Gas trasmission return
GU06117800
£54,31 Unit Price incl. VAT
18
RH/LH rearview mirror
883802
Not Available
18
LH rearview mirror
GU32769860
Not Available
19
Hose clamp L36 mm
GU03609600
£1,94 Unit Price incl. VAT
19
Hose clamp L46 mm
GU01609630
£3,95 Unit Price incl. VAT
20
RH rearview mirror
GU32769460
Not Available
20
RH/LH rearview mirror
883802
Not Available

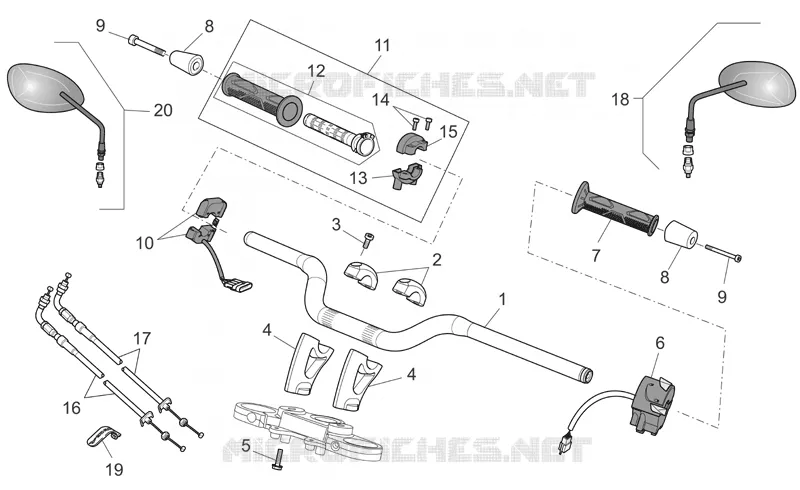

Find the detailed Handlebar - Controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
