1
Engine displacement
1100
2
Model
GRISO
3
Year
2008
4
Trim
Griso V IE
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Specific tools II
by
Fuel supply
Front wheel
1
2
3
3
4
4
5
6
6
7
7
8
9
10
11
12
13
14
1
Front wheel, black 3,5x17"
GU06610300
£1 377,71 Unit Price incl. VAT
2
Spacer
GU05615230
£46,31 Unit Price incl. VAT
3
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
4
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
5
Circlip 47X50,5
GU90272047
£7,98 Unit Price incl. VAT
6
Front brake disc
AP8133781
Not Available
7
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
8
Front wheel spindle
GU05614130
£105,98 Unit Price incl. VAT
9
Spacer
GU06616300
£13,40 Unit Price incl. VAT
10
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
11
Nut
GU01612190
£10,82 Unit Price incl. VAT
12
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
14
Front/rear tyre 120/70 R17
00000000000
Not Available

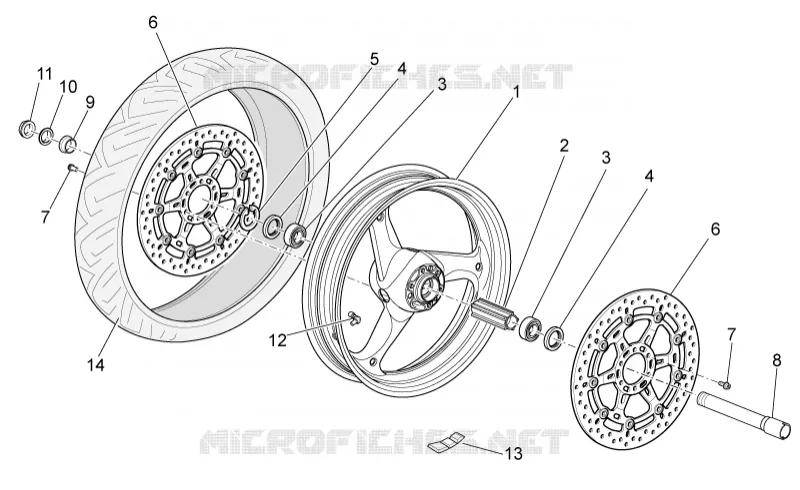

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
