1
Engine displacement
1100
2
Model
GRISO
3
Year
2007
4
Trim
Griso V IE
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Transmission cage
Frame
1
2
3
4
5
6
7
7
7
7
8
8
9
10
11
11
12
12
13
13
14
14
15
16
17
1
Frame, grey
GU06400100
£772,98 Unit Price incl. VAT
2
Hex socket screw M12x50
GU98682650
£5,03 Unit Price incl. VAT
3
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT
4
RH plate
GU05425530
£19,26 Unit Price incl. VAT
5
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
6
Pin M12
AP8221160
£18,62 Unit Price incl. VAT
7
Washer 13x24x2,5
GU95008313
£1,26 Unit Price incl. VAT
8
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
9
Pin M12
AP8221307
£16,42 Unit Price incl. VAT
10
Rubber spacer
AP8220238
£2,48 Unit Price incl. VAT
11
Rubber spacer
AP8220162
£5,44 Unit Price incl. VAT
12
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
13
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
14
Gasket
GU06409800
£4,21 Unit Price incl. VAT
15
Guard
GU06461300
£22,54 Unit Price incl. VAT
16
Guard decal
977050
£7,86 Unit Price incl. VAT
17
Silencer supp. plate
978146
£40,21 Unit Price incl. VAT

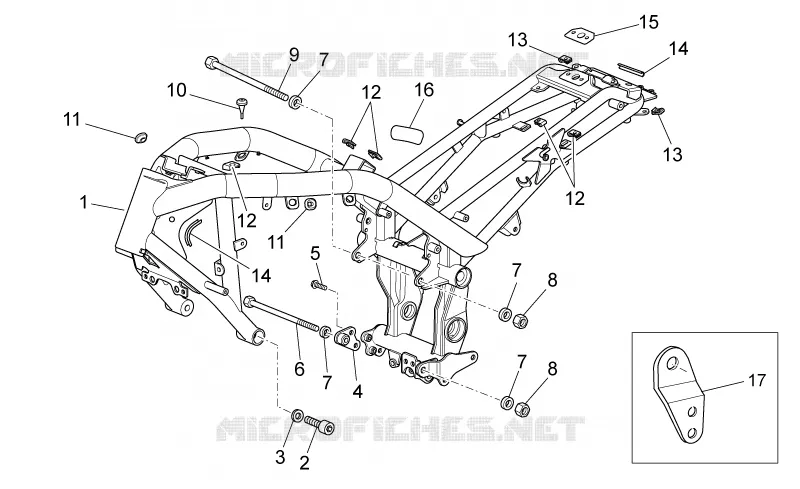

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
