Engine displacement
1200
2
Model
GRISO
3
Year
2016
4
Trim
Griso S.E. 8V E3
5
Parts Catalog
Lubrication
6

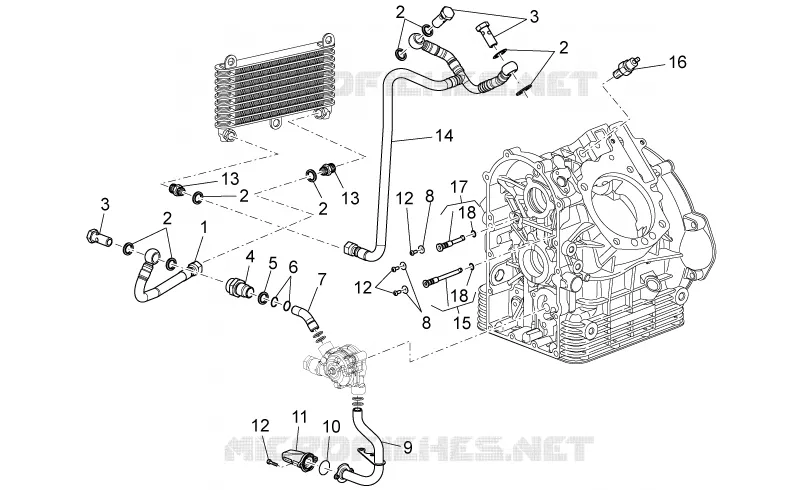

Parts Diagram
Parts Catalog
Internal fuel pump
by
Front mudguard
Lubrication
1
2
2
2
2
2
3
3
4
5
6
7
8
8
9
10
11
12
12
12
13
13
14
15
16
17
18
18
1
Pipe
874680
£181,40 Unit Price incl. VAT
2
Gasket
GU01154230
£2,34 Unit Price incl. VAT
3
Bored screw
874223
£15,30 Unit Price incl. VAT
4
Nipple
874669
£65,35 Unit Price incl. VAT
5
Gasket
118737
Not Available
6
O-ring 12,42x1
434947
£0,24 Unit Price incl. VAT
7
Oil pipe
874646
£58,28 Unit Price incl. VAT
8
Flat washer 4,2x12x1
013763
Not Available
9
Suction pipe
B064018
£53,63 Unit Price incl. VAT
10
O-ring
969323
£1,27 Unit Price incl. VAT
11
Intake oil filter
874655
£8,70 Unit Price incl. VAT
12
Hex socket screw
581957
£0,30 Unit Price incl. VAT
13
Reduction
GU01161331
£18,25 Unit Price incl. VAT
14
Pipe
874716
Not Available
15
LH Nozzle
976680
£68,42 Unit Price incl. VAT
16
Oil pressure sensor
641541
Not Available
17
RH Nozzle
976681
£68,42 Unit Price incl. VAT
18
O-ring
874238
£15,00 Unit Price incl. VAT
