Engine displacement
1200
2
Model
GRISO
3
Year
2012
4
Trim
Griso S.E. E3
5
Parts Catalog
Connecting rod - rear shock abs.
6
Parts Diagram
Parts Catalog
Blow-by system
by
Rear body - Rear fairing
Connecting rod - rear shock abs.
1
2
3
4
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
7
8
9
10
11
11
12
13
14
15
16
1
Shock absorber
GU06550200
Not Available
2
Screw w/ flange M10x80
AP8152398
£13,28 Unit Price incl. VAT
3
Double conrod
GU05560330
Not Available
4
Double connecting rod pin L40
AP8135924
£23,82 Unit Price incl. VAT
5
Roller cage
AP8110066
£21,68 Unit Price incl. VAT
6
Oil seal D18x24x3
AP8110068
£16,14 Unit Price incl. VAT
7
Double connecting rod pin L47
GU05562030
£44,65 Unit Price incl. VAT
8
Double connecting rod pin L25
AP8135608
Not Available
9
Hex socket screw M10x82
AP8152397
£21,90 Unit Price incl. VAT
10
T bush *
AP8121155
£3,85 Unit Price incl. VAT
11
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
12
Hex screw M10x47
AP8152147
£12,65 Unit Price incl. VAT
13
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
14
Single conrod comp.
GU05562430
£298,92 Unit Price incl. VAT
15
Screw w/ flange M10x85
AP8152482
£6,38 Unit Price incl. VAT
16
Screw w/ flange M10x95
AP8152396
£18,83 Unit Price incl. VAT

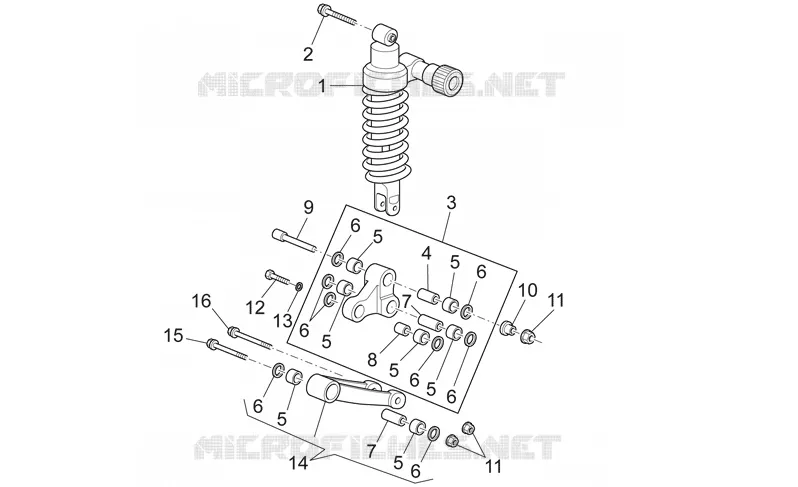

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
