Engine displacement
1400
2
Model
ELDORADO
3
Year
2017
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Central stand
6

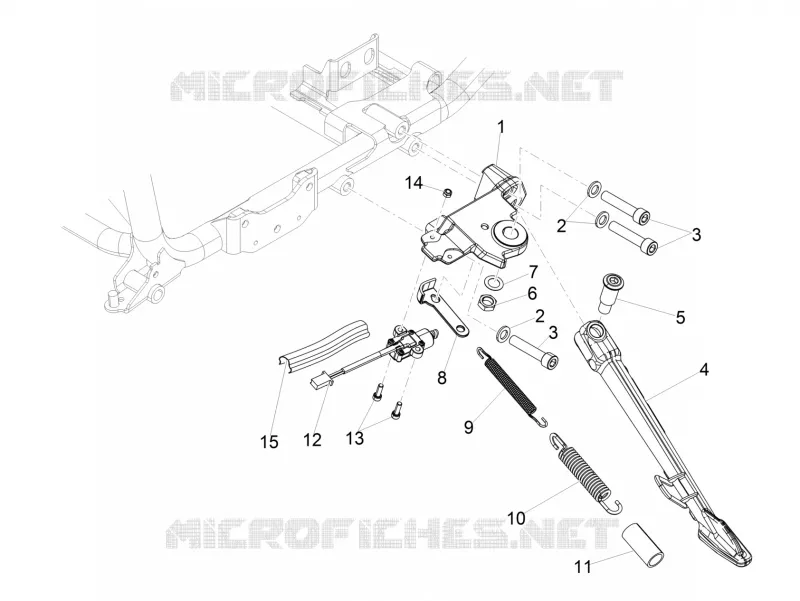

Parts Diagram
Parts Catalog
Blow-by system
by
Saddle
Central stand
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Stand plate
2B000460
£99,67 Unit Price incl. VAT
2
Washer
AP8152220
£3,24 Unit Price incl. VAT
3
screw M10x40
GU98880540
£5,23 Unit Price incl. VAT
4
Lateral stand
2B000462
Not Available
5
Stand rotation pin
B063444
£36,82 Unit Price incl. VAT
6
Nut M12x1,25
AP8152135
£2,48 Unit Price incl. VAT
7
Washer
GU95129240
£3,78 Unit Price incl. VAT
8
Lateral stand plate
851550
£15,97 Unit Price incl. VAT
9
Coil pull spring
AP8121014
£3,71 Unit Price incl. VAT
10
Lateral stand external spring
AP8121015
£30,25 Unit Price incl. VAT
11
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
12
Button for side stand
639542
£30,10 Unit Price incl. VAT
13
Hex socket screw
GU98612216
£1,02 Unit Price incl. VAT
14
Low self-locking nut
AP8150311
£0,07 Unit Price incl. VAT
15
Thermal sheath
GU00823923140
£45,62 Unit Price incl. VAT
