Gear box - Gear assembly for V7 III Special 750 E4 ABS from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear box - Gear assembly

1

Ball bearing 20x52x15

GU92201822

£33,05 Unit Price incl. VAT

2

Washer

873928

£10,54 Unit Price incl. VAT

3

Screw

B013608

£1,98 Unit Price incl. VAT

4

Thrust washer

1A000566

Not Available

5

Primary gear shaft

2A000625

£168,14 Unit Price incl. VAT

6

Moveable bush

849308

£31,02 Unit Price incl. VAT

7

Fifth speed gear

1A000360

Not Available

8

Clearance washer

849424

£3,05 Unit Price incl. VAT

9

Shaft snap ring

1A002604

Not Available

10

Sliding pinion 3a - 4a vel.

1A000436

Not Available

11

Thrust washer

B015040

£2,40 Unit Price incl. VAT

12

Moveable bush

974162

£34,78 Unit Price incl. VAT

13

Gear 6a

2A000627

£106,06 Unit Price incl. VAT

14

Clearance washer

849396

£3,25 Unit Price incl. VAT

15

Snap ring

974165

£2,95 Unit Price incl. VAT

16

2nd pinion gear

1A000365

Not Available

17

Ball bearing 20x47x14

848650

Not Available

18

Gasket ring 25X40X7

GU90412541

£22,12 Unit Price incl. VAT

19

Ball bearing 25x52x15

GU92201226

£50,18 Unit Price incl. VAT

20

Secondary gearbox shaft

2A000203

£107,22 Unit Price incl. VAT

21

Moveable bush

849308

£31,02 Unit Price incl. VAT

22

Second speed gear Z=32

1A000366

Not Available

23

Clearance washer

849309

£3,13 Unit Price incl. VAT

24

Shaft snap ring

1A002604

Not Available

25

Gear 6a Z=24

1A000370

Not Available

26

Clearance washer

849310

£6,13 Unit Price incl. VAT

27

Third speed gear Z=28

1A000367

Not Available

28

Fourth speed gear Z=26

1A000368

Not Available

29

Fifth speed gear Z=24

1A000369

Not Available

30

1st gear

2A000629

£131,08 Unit Price incl. VAT

31

Oil pump assy.

B018448

£21,91 Unit Price incl. VAT

32

Screw M5x16

2A000241

£0,48 Unit Price incl. VAT

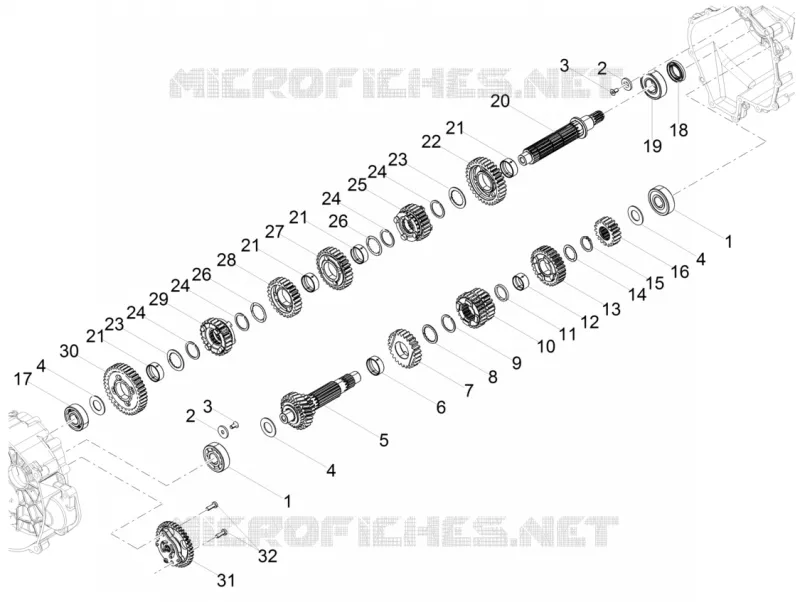

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
