Exhaust pipe for V7 III Racer e4 from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Exhaust pipe

1

EXHAUST PIPE CYLINDER SIDE

2B003930

£357,08 Unit Price incl. VAT

2

EXHAUST PIPE CYLINDER SIDE

2B003931

£423,73 Unit Price incl. VAT

3

Lamda sensor l.660 mm

896110

£143,81 Unit Price incl. VAT

4

Lamda sensor l. 325 mm

584344

£178,32 Unit Price incl. VAT

5

THERMAL PROTECTION

2B0039345

£160,93 Unit Price incl. VAT

6

THERMAL PROTECTION

2B0039325

Not Available

7

Exhaust pipe gasket

852090

Not Available

8

Flanged nut M8

GU92660021

£1,60 Unit Price incl. VAT

9

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

10

D.37 clamp

B063292

£37,60 Unit Price incl. VAT

11

Hex socket screw M6x10

2B002187

£0,61 Unit Price incl. VAT

12

Protezione marmitta dx

2B0035515

Not Available

13

Spacer

876879

£10,63 Unit Price incl. VAT

14

Vite TBEI flangiata M6x12

2B004031

£0,65 Unit Price incl. VAT

15

Thermal cover

2B003643

£11,90 Unit Price incl. VAT

16

Spring plate M6

254485

£1,64 Unit Price incl. VAT

17

Hose clamp

840370

Not Available

18

Bushing

GU91113826

£37,93 Unit Price incl. VAT

19

RH silencer

2B0031505

Not Available

20

LH silencer

2B0031495

Not Available

21

Right silencer support bracket

2B003152

£61,00 Unit Price incl. VAT

22

Left silencer support bracket

2B003151

£61,00 Unit Price incl. VAT

23

screw M8x40

GU98690440

£2,64 Unit Price incl. VAT

24

Silencer fixing bush

AP8134378

£18,83 Unit Price incl. VAT

25

Spacer

AP8121072

Not Available

26

Rubber exhaust

AP8144071

£13,10 Unit Price incl. VAT

27

Nut M8x1,25

967363

£1,27 Unit Price incl. VAT

28

Hex socket screw M8x12

AP8152055

£13,28 Unit Price incl. VAT

29

Washer

GU95008308

£1,26 Unit Price incl. VAT

30

Protezione marmitta dx

2B0035515

Not Available

31

Hose clamp

2B001935

£24,92 Unit Price incl. VAT

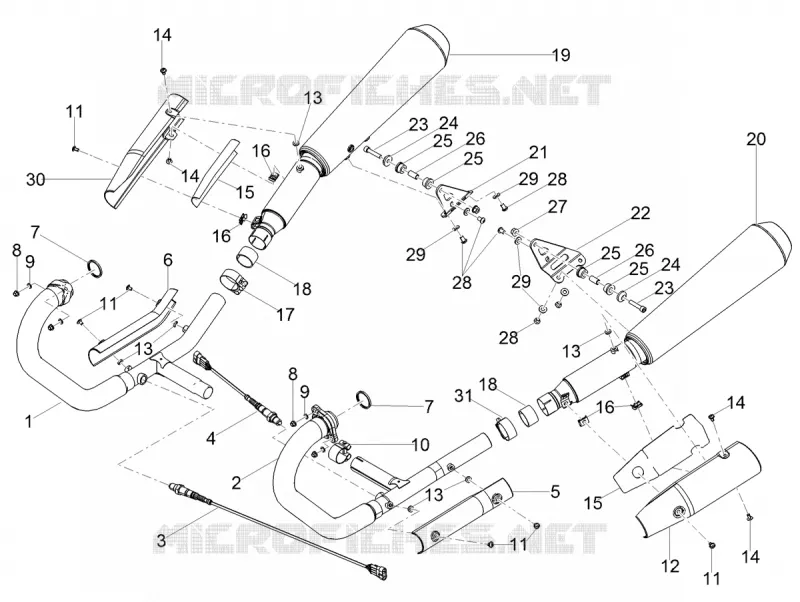

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
