Gear lever for California Touring E4 from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear lever

1

Gear lever I

B063035

£238,64 Unit Price incl. VAT

2

Sintered bushing

895328

£6,22 Unit Price incl. VAT

3

Gear lever II

B063751

£237,68 Unit Price incl. VAT

4

Hex socket screw M6x25

GU98682325

£1,26 Unit Price incl. VAT

5

Rubber pedal

GU13432640

£9,67 Unit Price incl. VAT

6

Left ball joint M6

898397

£16,18 Unit Price incl. VAT

7

Hex socket screw M8x60

GU98680460

£5,28 Unit Price incl. VAT

8

Washer

GU95008308

£1,26 Unit Price incl. VAT

9

O-ring 11,11x1,78

AP8144007

£1,39 Unit Price incl. VAT

10

Spacer

B063903

£10,44 Unit Price incl. VAT

11

Self-locking nut M8

AP8152300

£1,94 Unit Price incl. VAT

12

Tie rod assembly

887510

£21,61 Unit Price incl. VAT

13

Nut

GU92606206

£1,02 Unit Price incl. VAT

14

LH thread nut M6

GU31256881

£5,08 Unit Price incl. VAT

15

RH ball joint M6

898396

£16,46 Unit Price incl. VAT

16

Nut M6

GU92630707

£2,04 Unit Price incl. VAT

17

Lever

887318

£85,75 Unit Price incl. VAT

18

Tie rod assembly

B063639

£51,23 Unit Price incl. VAT

19

RH ball joint M6

AP8210007

£15,91 Unit Price incl. VAT

20

Left ball joint M6

AP8110053

£16,18 Unit Price incl. VAT

21

Lever

GU05256930

£141,68 Unit Price incl. VAT

22

Hex socket screw M6x20

GU98682320

£1,26 Unit Price incl. VAT

23

Dado autobloccante M6x1

GU92630206

£2,48 Unit Price incl. VAT

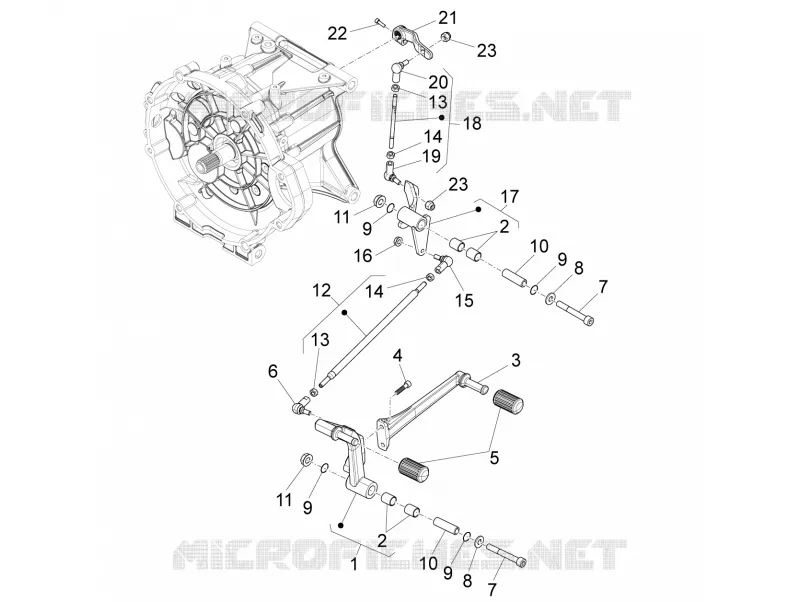

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
