Transmission cage for California EV (V11 EV USA) from 1998

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Transmission cage

GU30200260

Not Available

2

Gasket ring 35x47x7

GU90403547

£10,73 Unit Price incl. VAT

3

Roller bearing 17x35x15

GU92256218

£105,14 Unit Price incl. VAT

4

plate

GU14213803

£65,10 Unit Price incl. VAT

5

Hex socket screw

GU98622316

Not Available

6

Washer 6,4x10x0,7

GU14217901

Not Available

7

Ball bearing AF/AS 25x52

GU92218424

Not Available

8

Roller bearing AS 17x47x14

GU92234717

£182,04 Unit Price incl. VAT

9

Pin

GU95512081

£4,34 Unit Price incl. VAT

10

Gasket

GU14201110

£2,00 Unit Price incl. VAT

11

Box cover

GU30200860

Not Available

12

O-ring 13,95x2,92

GU90706140

£1,25 Unit Price incl. VAT

13

Ball bearing AP 17x47x14

GU92201417

Not Available

14

screw

GU14237800

£21,61 Unit Price incl. VAT

15

Low nut M12x1,25

GU92602512

£1,57 Unit Price incl. VAT

16

Hex socket screw

GU98622325

£1,02 Unit Price incl. VAT

17

screw M6x35

GU98620335

£1,14 Unit Price incl. VAT

18

Neutral indicator switch

GU12207200

Not Available

19

Gasket

GU12207700

Not Available

20

Washer 6,4x10x0,7

GU14217901

Not Available

21

screw

GU98230615

Not Available

22

Cover

GU93180220

£3,68 Unit Price incl. VAT

23

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

24

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

25

Oil level plug

GU95980214

£12,80 Unit Price incl. VAT

26

Gasket

GU10528900

£4,45 Unit Price incl. VAT

27

Oil breather valve

GU14204955

£21,26 Unit Price incl. VAT

28

Rubber pipe 12,5X7,8 5/16"

GU00823956080

£45,66 Unit Price incl. VAT

29

Lever return spring

GU94321067

£1,86 Unit Price incl. VAT

30

Pawl

GU55234700

£82,48 Unit Price incl. VAT

31

Gasket ring 35x47x7/6,5

GU90403548

Not Available

32

Cover

GU95980610

£26,23 Unit Price incl. VAT

33

Gasket 8,25x15x1

GU12154200

£2,45 Unit Price incl. VAT

34

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

35

screw

GU98822325

Not Available

36

Cover

GU93180245

£2,63 Unit Price incl. VAT

37

Maintenance

GU30424660

£19,57 Unit Price incl. VAT

38

Gearbox assy., grey

GU03991500

Not Available

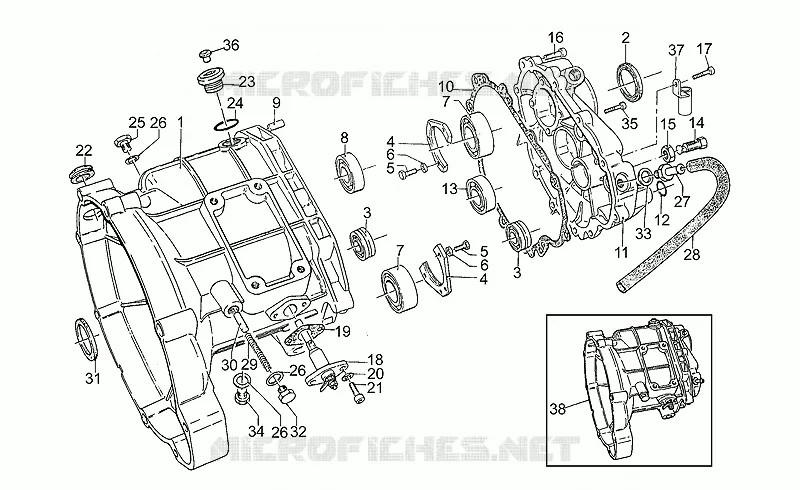

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
