1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1998
4
Trim
California EV (V11 EV USA)
5
Parts Catalog

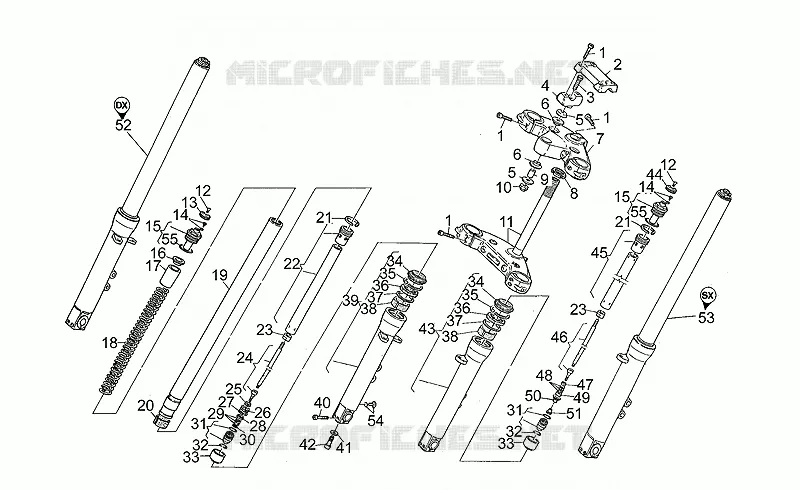

Front fork
6
Parts Diagram
Parts Catalog
Air filter
by
Swing arm
Front fork
1
1
1
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
21
22
23
23
24
25
26
27
28
29
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
1
screw
GU98622430
£1,58 Unit Price incl. VAT
2
Upper U-bolt
GU03500200
Not Available
3
screw M10x60
GU98052560
£5,32 Unit Price incl. VAT
4
Lower U-bolt
GU03530500
Not Available
5
Cup
GU27530505
Not Available
6
Rubber spacer
GU27530503
Not Available
7
Fork upper plate
GU03493100
£499,79 Unit Price incl. VAT
8
Ring nut
GU03498100
£25,97 Unit Price incl. VAT
9
Spacer
GU03530503
Not Available
10
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
11
Stem base
GU03494000
£509,94 Unit Price incl. VAT
12
screw
GU03530504
£1,87 Unit Price incl. VAT
13
RH adjustment knob rebound
GU03530505
£67,09 Unit Price incl. VAT
14
Screw with OR
GU03530506
Not Available
15
Plug cpl.
GU03530507
£265,97 Unit Price incl. VAT
16
Cup
GU03530508
£10,12 Unit Price incl. VAT
17
Preload tube
GU03530509
£11,59 Unit Price incl. VAT
18
Spring
GU03526600
£71,29 Unit Price incl. VAT
19
Sleeve
GU03525400
£322,60 Unit Price incl. VAT
20
Lower bush
GU03530510
Not Available
21
Ring
GU03530511
£18,49 Unit Price incl. VAT
22
RH hub
GU03530512
£108,44 Unit Price incl. VAT
23
Return nut
GU03530513
Not Available
24
RH shock absorber
GU03530514
Not Available
25
Return spring
GU03530515
£1,72 Unit Price incl. VAT
26
RH piston rebound
GU03530516
Not Available
27
RH piston segmentrebound
GU03530517
£17,03 Unit Price incl. VAT
28
RH needle rebound
GU03530518
£29,66 Unit Price incl. VAT
29
Calibration blade
GU03530519
£1,85 Unit Price incl. VAT
30
Nut
GU03530520
Not Available
31
Stroke limit stop
GU03530521
£63,26 Unit Price incl. VAT
32
O-ring
GU03530522
£5,88 Unit Price incl. VAT
33
Adaptor
GU03530523
£43,45 Unit Price incl. VAT
34
Dust cover
GU03530524
Not Available
35
Stop ring
GU03530525
Not Available
36
Gasket ring
GU03530526
Not Available
37
Cup
GU03530527
Not Available
38
Upper bush
GU03530528
Not Available
39
RH sleeve
GU03522501001
£323,04 Unit Price incl. VAT
39
RH sleeve cpl.
GU03522500001
Not Available
40
screw
GU98620340
£0,61 Unit Price incl. VAT
41
Washer
GU03530529
Not Available
42
screw M10x30
GU03530530
Not Available
43
LH sleeve cpl.
GU03522600001
Not Available
43
LH sleeve
GU03522601001
£323,04 Unit Price incl. VAT
44
LH adjustment knob comp.
GU03530531
£62,14 Unit Price incl. VAT
45
LH hub
GU03530532
£108,44 Unit Price incl. VAT
46
LH shock absorber
GU03530533
£63,46 Unit Price incl. VAT
47
Cup
GU03530534
£12,14 Unit Price incl. VAT
48
Calibration blade 17 mm
GU03530537
Not Available
48
Calibration blade 12 mm
GU03530535
£1,75 Unit Price incl. VAT
48
Calibration blade 15 mm
GU03530536
£1,75 Unit Price incl. VAT
49
LH needle compression
GU03530538
£32,33 Unit Price incl. VAT
50
LH piston compression
GU03530539
Not Available
51
Nut
GU03530540
£15,37 Unit Price incl. VAT
52
RH hub cpl.
GU03490601
Not Available
52
RH hub cpl.
GU03490600
Not Available
53
LH hub cpl.
GU03490700
£323,04 Unit Price incl. VAT
53
LH hub cpl.
GU03490701
Not Available
54
Screw with OR
GU30530521
£13,40 Unit Price incl. VAT
55
O-ring
GU30530561
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
