Foot rests for California EV (V11 EV USA) from 1998

Free shipping for all orders to United Kingdom over £150! See conditions.

Foot rests

1

RH craddle arm

GU03420300

£115,37 Unit Price incl. VAT

2

LH craddle arm

GU03422100

£115,37 Unit Price incl. VAT

3

RH cover chromium plated

GU03446900

£47,30 Unit Price incl. VAT

4

LH cover chromium plated

GU03447400

Not Available

5

screw

GU98230621

Not Available

6

Washer

GU95004208

£0,70 Unit Price incl. VAT

7

Antivibration bush M6

GU93231606

£1,79 Unit Price incl. VAT

8

Mat

GU30447060

Not Available

9

Foot rest

GU29443501

£65,33 Unit Price incl. VAT

10

Hex screw M8x30

GU98052430

£1,58 Unit Price incl. VAT

11

Nut

GU92630108

£1,02 Unit Price incl. VAT

12

Pin

GU14429500

Not Available

13

Washer

GU95000213

£0,96 Unit Price incl. VAT

14

Nut

GU92602312

£1,58 Unit Price incl. VAT

15

RH foot rest support polished

GU29443550

Not Available

16

RH front foot rest pipe

GU23440710

Not Available

17

LH footrest support polished

GU29446050

Not Available

18

LH front foot rest pipe

GU23441810

£84,12 Unit Price incl. VAT

19

Rubber pedal

GU23443210

£17,44 Unit Price incl. VAT

20

Plate

GU23441210

£17,46 Unit Price incl. VAT

21

screw

GU98054314

£0,49 Unit Price incl. VAT

22

Special washer

GU61013800

£1,26 Unit Price incl. VAT

23

Spacer

GU91180602

£10,21 Unit Price incl. VAT

24

screw

GU29442250

£23,45 Unit Price incl. VAT

25

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

26

Nut

GU92630508

£1,67 Unit Price incl. VAT

27

screw M12x35

GU98623635

Not Available

28

screw M12x50

GU98621650

Not Available

29

Plate

GU17444250

£8,28 Unit Price incl. VAT

30

Washer

GU95100414

£1,58 Unit Price incl. VAT

31

Notched washer

GU95021112

£0,65 Unit Price incl. VAT

32

Low nut M12x1,25

GU92602512

£1,57 Unit Price incl. VAT

33

Nut

GU92602312

£1,58 Unit Price incl. VAT

34

screw M12x40

GU98623640

Not Available

35

Cover

GU93180245

£2,63 Unit Price incl. VAT

36

Washer

GU95000206

£1,02 Unit Price incl. VAT

37

Cradle arms conn.crosspiece

GU30425260

£42,40 Unit Price incl. VAT

38

Hex screw M10X22

GU98054522

Not Available

39

Notched washer

GU95021110

Not Available

40

Pad

GU29447150

£1,76 Unit Price incl. VAT

41

Gasket

GU00823931055

£10,76 Unit Price incl. VAT

42

screw

GU98230615

Not Available

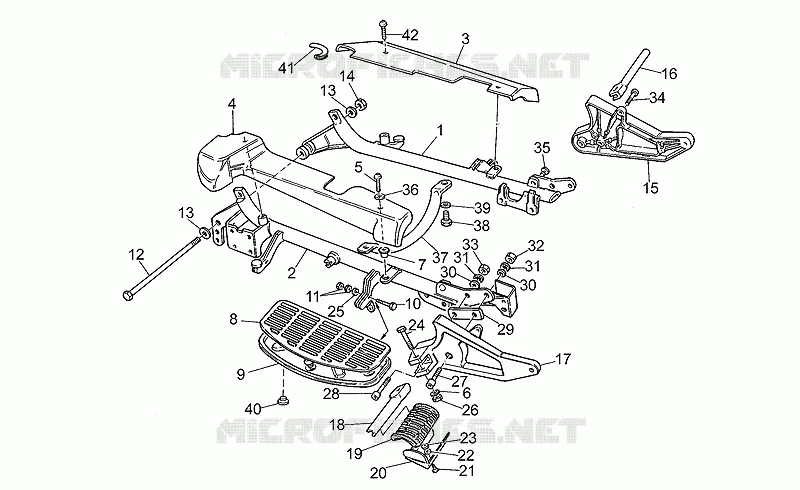

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
