Electrical system for California EV (V11 EV USA) from 1998

Free shipping for all orders to United Kingdom over £150! See conditions.

Electrical system

1

Electrical system

GU03747130

Not Available

1

Electrical system

GU03747100

Not Available

2

Dashboard cable Borletti

GU03747200

£118,18 Unit Price incl. VAT

3

Plate

GU30749760

£12,28 Unit Price incl. VAT

4

screw

GU98622312

Not Available

5

Clip

GU28576590

£2,35 Unit Price incl. VAT

6

Clip

GU30922260

£2,64 Unit Price incl. VAT

7

Special washer

GU61013800

£1,26 Unit Price incl. VAT

8

Wire

GU03748400

Not Available

9

Cap

GU19707100

£12,65 Unit Price incl. VAT

10

Taillight wiring harn.

GU30753160

£36,70 Unit Price incl. VAT

11

Ground-battery lead

GU02747901

£22,31 Unit Price incl. VAT

11

Ground-battery lead

GU19748400

Not Available

12

plate

GU30746360

£5,88 Unit Price incl. VAT

13

Hex socket screw

GU98622316

Not Available

14

Rubber spacer

GU91551080

£4,69 Unit Price incl. VAT

15

Spacer

GU91180607

Not Available

16

RH clamp

GU30477101

Not Available

17

LH plate

GU30477200

£10,22 Unit Price incl. VAT

18

screw

GU98622310

£1,26 Unit Price incl. VAT

19

Washer 6,2X18X1

GU95100118

£1,87 Unit Price incl. VAT

20

Dado autobloccante M6x1

GU92630206

£2,48 Unit Price incl. VAT

21

Relay Siemens A302/B1008

GU30732560

£40,60 Unit Price incl. VAT

22

Fuse 15A

GU28742560

Not Available

23

Flasher unit

GU17750520

Not Available

24

Block

GU17751200

Not Available

25

Hose clamp 3,6x20,6

GU14609650

£1,02 Unit Price incl. VAT

26

Battery

GU03704540

£107,08 Unit Price incl. VAT

27

Battery holder

GU28707050

£27,20 Unit Price incl. VAT

28

Battery fixing snap

GU28704900

Not Available

29

Battery fixing plate

GU03705000

Not Available

29

Battery fixing plate

GU30705061

£18,46 Unit Price incl. VAT

29

Battery fixing snap

GU03705540

£29,15 Unit Price incl. VAT

30

Pad

GU12433000

Not Available

31

Rubber spacer

GU14461400

Not Available

32

Breather pipe

GU95985351

£2,68 Unit Price incl. VAT

33

Flasher unit

GU31750560

£68,06 Unit Price incl. VAT

34

Ground-battery lead

GU31755660

£8,16 Unit Price incl. VAT

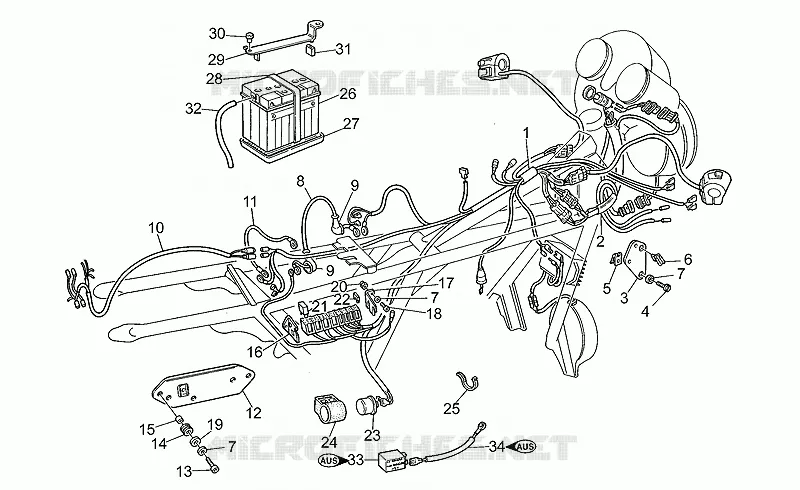

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
